Combination of Power connector PA45

Short Description:

Features:

• Finger proof

Helps prevent fingers (or probes) from accidentally touching live contacts

• Flat wiping contact system

Minimal contact resistance at high current,wiping action cleans contact surface during connection/disconnection

• Molded-in dovetails

Secures individual connectors into “keyed” assemblies which prevents misconnection with similar configurations

• Interchangeable genderless design

Makes assembly easy and reduces stock


Product Detail

Product Tags

Features:

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 10~20AWG

• A set of connector is made up of one housing and one terminal

• Voltage Rating AC/DC 600V

• Dielectric Withsanding Voltage 2200 Volts AC

• Insulation Resistance 1000MΩ

• Replace Anderson power products

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification, which can be used safetly in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

<45A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

10-20AWG

Contact material Copper、Plate with silver orTin
Insulation material

PC

Flammability

UL94 V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles& 120V)

To 10,000

20A

average Contact Resistance(micro-ohms)

<500μQ

Insulation Resistance

1000MQ

average. Connection\disconnect(N)

15N

Connector holding force (Ibf)

150N Min

Temperature Range

-20℃~105℃

Dielectric Withstanding Voltage

2200 Volts AC

| Housing

Combination of Power connector PA45-3
Combination of Power connector PA45-4
Part Number Housing Color
PA45B0-H Black
PA45B1-H Brown
PA45B2-H Red
PA45B3-H Orange
PA45B4-H Yellow
PA45B5-H Green
PA45B6-H Blue
PA45B7-H Purple
PA45B8-H Gray
PA45B9-H White

| Corrugation Housing

Combination of Power connector PA45-4
Combination of Power connector PA45-5
Part Number Housing Color
PA45B0-HF Black
PA45B1-HF Brown
PA45B2-HF Red
PA45B3-HF Orange
PA45B4-HF Yellow
PA45B5-HF Green
PA45B6-HF Blue
PA45B7-HF Purple
PA45B8-HF Gray
PA45B9-HF White

| Temperature rise charts

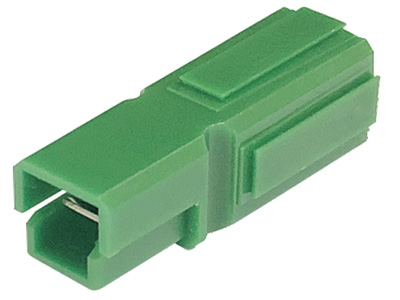

| Grounding housing

Combination of Power connector PA45-5
Combination of Power connector PA45-7
Part Number Housing Color
C.F.DP04505A-1 Green

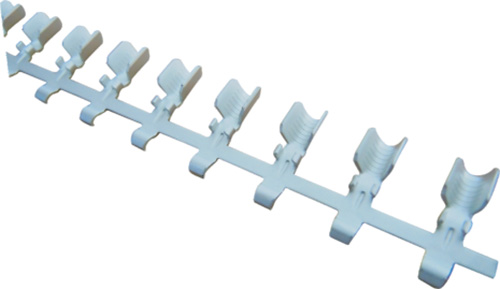

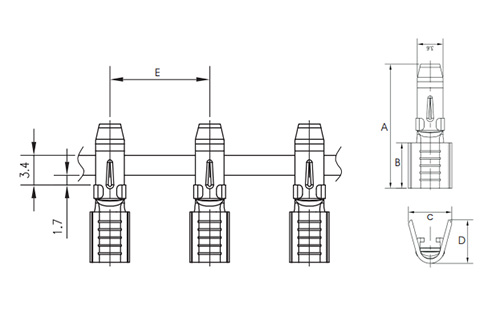

| Terminal ( Reel )

Combination of Power connector PA45-6
Combination of Power connector PA45-8

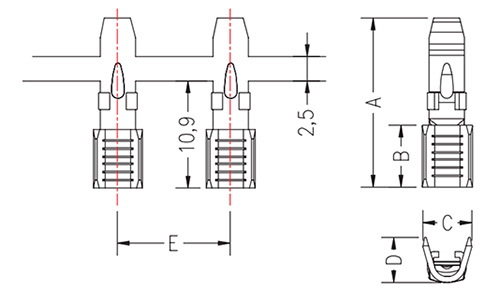

Part number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm) -E- (mm)

Wire

Plating

PA261G2-T

17.6

6.4

5.2

5.1

11.5 10/14 AWG

Tin

PA261G1-T

17.6

6.4

5.0

4.6

11.5 12/14 AWG

Tin

PA262G1-T

17.6

6.4

3.6

3.9

11.5 16/20 AWG

Tin

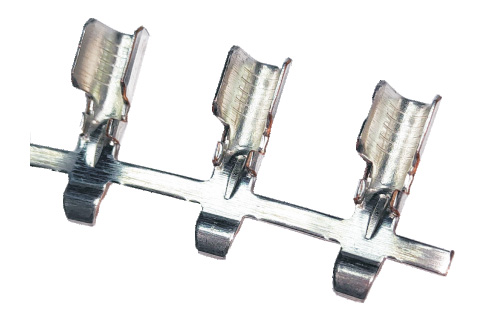

| Earth terminal( Reel )

Combination of Power connector PA45-7
Combination of Power connector PA45-9

Part number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm) -E- (mm)

Wire

Plating

CTDC261G2C-1

17.6

6.4

6.1

6.1

   13.0 10/14 AWG

Tin

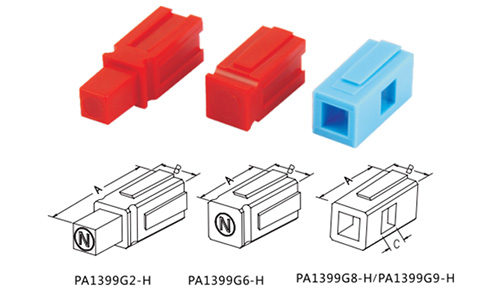

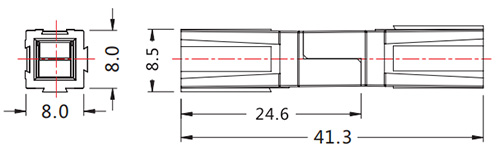

| Foolproof Auxiliary parts

Combination of Power connector PA45-1

P/N

-A-(mm)

-B-(mm)

-C-(mm)

-C-(mm)

PA1399G2-H

24.6

7.9

N/A

Red

PA1399G6-H

16.6

7.9

N/A

Red

PA1399G8-H

16.6

7.9

4.6

Blue

PA1399G9-H

16.6

7.9

4.6

Red

| Terminal (Individual)

Combination of Power connector PA45-8
Combination of Power connector PA45-2

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

Wire

Plating

PA1331-T

17.6

6.4

2.8

4.0

12/16 AWG

Ag

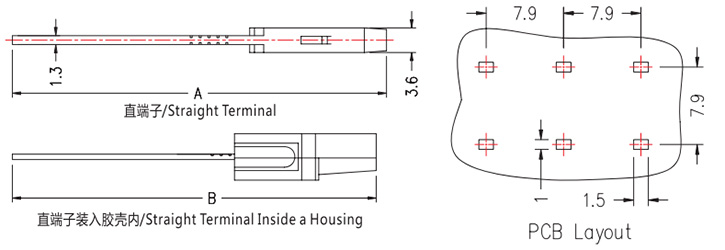

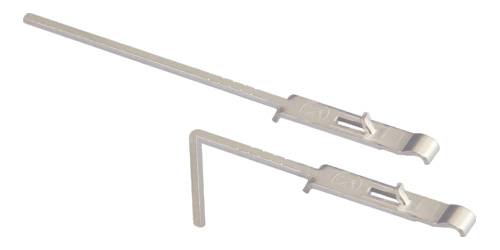

| PCB Terminal Contacts

Part Number

-A-(mm)

-B- (mm)

Plating

-PCB Footprint

30/45BBS

54.7

56.0

Ag

See following page

| 6 fixed seats (M)

Combination of Power connector PA45-4

Part Number

Pole

-A-(mm)

-B-(mm)

-C-(mm)

-E-(mm)

Dosage

C.F.6PIN001A

6

25.8

18.1

14.8

24.5

2

| 6 fixed seats (F)

Combination of Power connector PA45-5

Part Number

Pole

-A-(mm)

-B-(mm)

-C-(mm)

-E-(mm)

Dosage

C.H.E6P002A

6

26.35

25.9

23.3

26.2

2

| 2Pole&3Pole Sheath

Combination of Power connector PA45-6

Part Number

Pole

-A-(mm)

-B-(mm)

-C-(mm)

-D-(mm)

PA117G5

2

38

12.0

18.3

11.0

PA117G6

3

40

11.0

25.0

11.0

| 2Pole&3Pole Sheath

Combination of Power connector PA45-6

Part Number

Pole

-A-(mm)

-B-(mm)

-C-(mm)

-D-(mm)

PA117G5

2

38

12.0

18.3

11.0

PA117G6

3

40

11.0

25.0

11.0

| Housing without buckle

Combination of Power connector PA45-7





Part Number Pole -A-(mm) -B-(mm) -C-(mm) -E-(mm)
PA1460G1 2,3,4 50.0 31.0 21.8 22.0
PA1460G2 5,6 50.0   39.0  21.8 30.3





| Housing with buckle(short)

Combination of Power connector PA45-8



 Part Number Pole -A- (mm) -B- (mm) -C-(mm)  -D-(mm) -E-(mm)   -F-(mm)   -G-(mm)
PA1470G1 2,3,4 38 1.7 19.6 28 21.6 25.4 31.8
 PA1470G2  5,6 46 1.7 19.6 28 30 25.4 41.2
PA1470G5 8 54.6 1.7 19.6 28 37.9 25.4 42.1

| Housing with buckle (Long)

Combination of Power connector PA45-9

Part Number

Pole

-A- (mm)

-B- (mm)

-C-(mm)

-D-(mm)

-E-(mm)

PA1470G3

2,3,4

53.0

31.5

21.5

49.5

22.0

      PA1470G4       5,6 53.0 39.0 21.5 49.5 30.0

PA1470G6

8

53.7

46.9

21.6

50.0

37.9

Combination of Power connector PA45-10
Item  Product name  Part number
Housing without buckle Housing with buckle short Housing with buckle long
Four Six Four Six Eight Four Six Eight
1 Bolt PA110G9 PA110G9 PA110G9 PA110G9 PA110G9 PA110G9 PA110G9 PA110G9
2 Four six eight seat PA1460G1 PA1460G2 PA1470G1 PA1470G2 PA1470G5 PA1470G3 PA1470G4 PA1470G6
3 Metal clip PA115G1 PA115G2 N/A N/A N/A PA115G1 PA115G2 PA115G3
4 Self tapping screw PA115L1 PA115L1 N/A N/A N/A PA115L1 PA115L1 PA115L1
5 housing From page 10
6 Connecting terminal From page 12
