Multipole Power Connectors SA30

Short Description:

Arc contact surface design, low resistance, well temperature rise
performance
Anti aging, high toughness, wear resistance, anti and strong impact
High temperature resistance
Genderless design
Finger proof, self protection design
Flat sweeping contact with self cleaning system
Swallowtail model and combination design


Product Detail

Product Tags

Features:

• Multiple powerpoles, with sleeve and fixed groove design

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material, anti-gold finger/anti-test PIN/ anti-shock type, anti-misinsertion design

• One set is made of one housing and three terminals

• Contact Barrel Wire Size 10-14AWG

• Rated current 50A

• Temperature Range -20℃-105℃

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification,which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

50A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

12~14AWG

Contact material

Copper、Plate with Tin

Insulation material

PC

Flammability

UL94 V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles&120V)

To 10,000

20A

average Contact Resistance(micro-ohms)

<500μΩ

Insulation Resistance

1000MΩ

 average. Connection\disconnect(N)

50N

Connector holding force (Ibf)

200N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

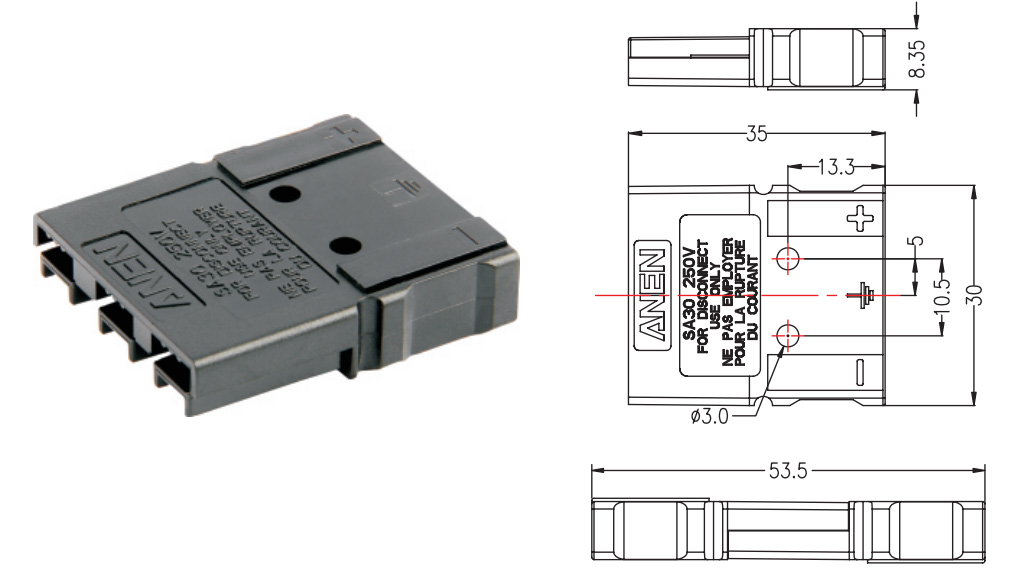

| SA30 Housing

Multipole Power Connectors SA30-3

               Part Number

             Housing Color

CFDD03000A Black
CFDD03001A Brown
CFDD03002A Red
CFDD03003A Orange
CFDD03004A Yellow
CFDD03005A Green
CFDD03006A Blue
CFDD03007A Purple
CFDD03008A Gray
CFDD03009A White

| Terminal

Part number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

Wire

CTDBC001

21.7

6.3

5.0

4.6

11.5

12~14AWG

CTDBC002

21.7

6.5

5.6

5.4

11.5

10AWG

| Provective sleeve

 Product name

Part number

Use level

Provective sleeve

GG004

1 PCS

Screw

GAA3501001

2 PCS

| Temperature rise charts

Multipole Power Connectors SA30-6

| Shell

Multipole Power Connectors SA30-7

Product name

Part number

Use level

Shell

GG024-X( 0 2 )

1 PCS

Screw

GAA3501001

2 PCS

| 3P Housing(M)

Multipole Power Connectors SA30-8

Part number

Use level

GG027

2 PCS

| 3P Housing(F)

Multipole Power Connectors SA30-9

Part number

Use level

GG026

2 PCS

| 6P Housing(M)

Multipole Power Connectors SA30-10

Part number

Use level

GG029

2 PCS

| 6P Housing(F)

Multipole Power Connectors SA30-11

Part number

Use level

GG028

2 PCS
