Multipole Power Connectors SA350

Short Description:

Feature:

• Structured color-coded

Prevents accidental mating of components operating at different voltage levels

• Flat wiping contact system

Allow for minimal contact resistance at high current, wiping action cleans contact surface during disconnection

• Auxiliary contacts

Provides additional poles up to 30 amps for auxiliary power; control or sensing

• Genderless design

Makes assembly quick and easy and reduces number of parts stocked


Product Detail

Product Tags

Features:

• Double powerpoles, with handle&rubber plug design

• A variety of colors design

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material

• One set is made of one housing and two terminals

• Contact Barrel Wire Size 1/0-3/0AWG

• Rated current 350A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Replace Anderson part number SB350

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification,which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles.medical equipment AC/DC power etc. of widely industry and the most area around wo rld.

Technical Parameters:

Rated current (Amperes)

350A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

1/0 to 3/0 AWG

Contact material

Copper、 Plate with silver

Insulation material

PC

Flammability

UL94V-0

Life

  1. Without load (Contact/Disconnect Cycles)
  2. With Load (Hot Plug 250 Cycles&120V)

To 10,000

75A

average Contact Resistance(micro-ohms)

<40 μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

280N

Connector holding force (Ibf)

500N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

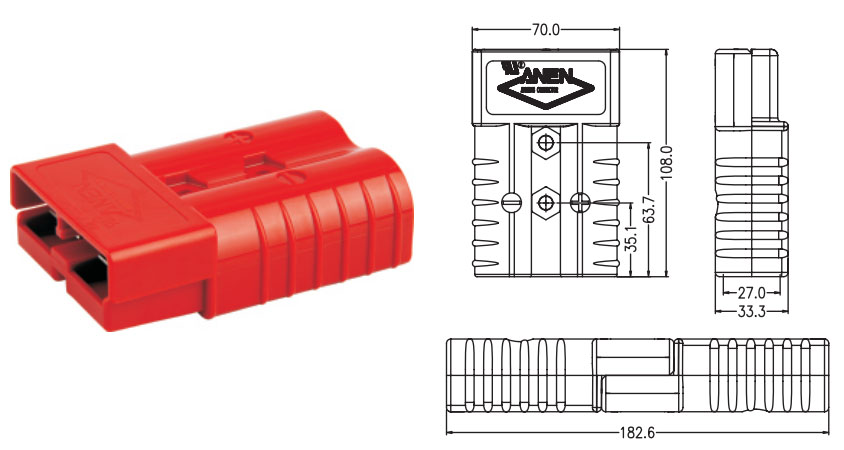

| SA350 Housing

Part Number Housing Color
SA350B0-H Black
SA350B1-H Brown
SA350B2-H Red
SA350B3-H Orange
SA350B4-H Yellow
SA350B5-H Green
SA350B6-H Blue
SA350B7-H Purple
SA350B8-H Gray
SA350B9-H White

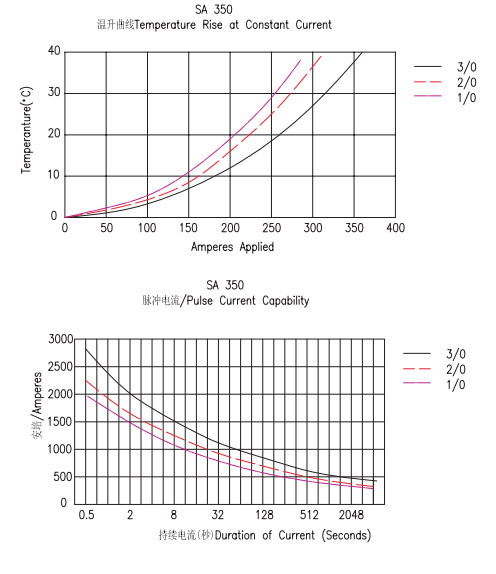

| Temperature rise charts

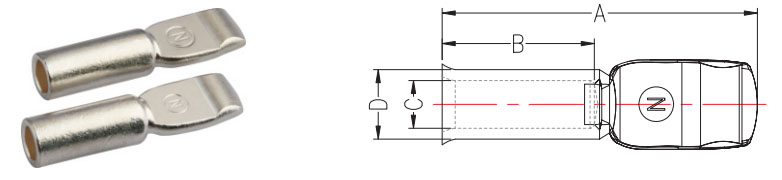

| Terminal

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

(Wire)

PA917-T

73.0

35.0

11.1

16.0

1/0AWG

PA907-T

73.0

35.0

12.6

16.0

2/0AWG

PA916-T

73.0

35.0

16.0

16.0

3/0AWG

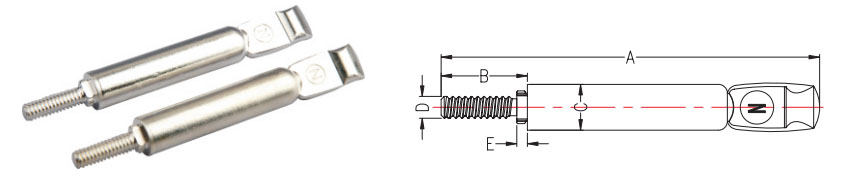

| PCB Terminal Contacts

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

350 BBS

131.8

22.4

17.0

#3/8-19 THD.

2.5

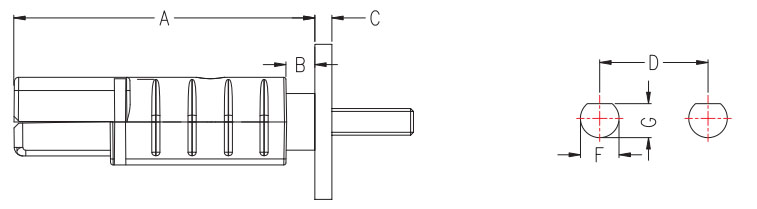

| Mounting Dimensions

Multipole Power Connectors SA350-7

Type

-A- (mm)

-B- (mm) -C- (mm) -D- (mm) -E- (mm) -F- (mm) -G- (mm)

350 BBS

113

      5.0

3.0

34.9

33.8

13.4

11.8

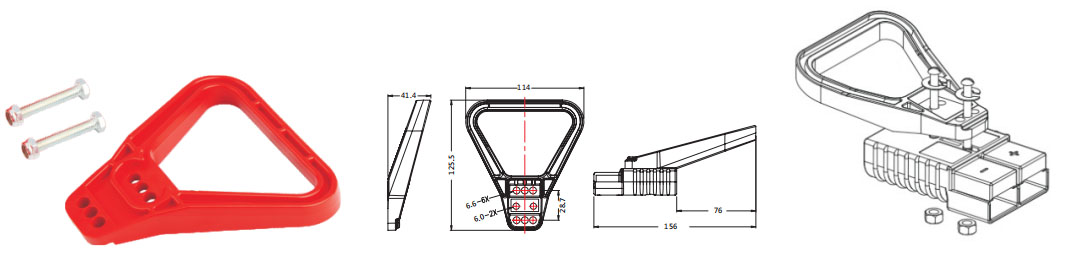

| Handle

Multipole Power Connectors SA175&SA3175&SAE175-15

Product name

Part number

Use level

Handle

PA112G3-X(0 1 8)

1 PCS

Screw

GAA0604501

2 PCS

Nut

GB007

2 PCS

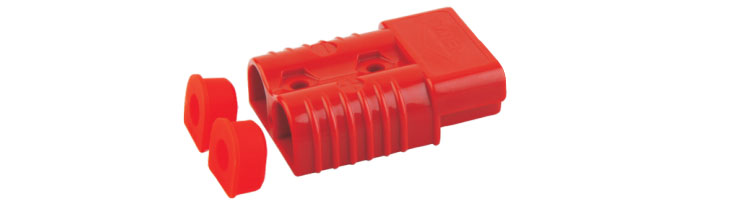

| Rubber plug

Multipole Power Connectors SA350-8
Product name P/N Wire(AWG) Colour Use level
Rubber plug PA117G4 1/0AWG Red 2 PCS
PA117G7 3/OAWG Red 2 PCS
