Multipole Power Connectors SA50&SA50(2 +2)

Short Description:

Feature:

• Flat wiping contact system

Minimal contact resistance at high currentwiping action cleans contact surface during connection/disconnection

• Structured color-coded

prevents accidental mating of components operating at different voltage levels

• Interchangeable genderless design

Makes assembly easy and reduces stock

• Flexible application

Meet cable to cable connection and cable to board requirement


Product Detail

Product Tags

Features:

• Double powerpoles design

• The housing is made of PC high temperateure material

• A variety of colors design, material is UL 94V-0

• Contact Barrel Wire Size 6-12AWG

• Rated current 50A

• Temperature Range -20℃-105℃

• Replace APP part number SB50

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Application:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

50A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

6~12AWG

Contact material

Copper Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life

  1. Without load (Contact/Disconnect Cycles)
  2. With Load (Hot Plug 250 Cycles&120V)

To 10,000

40A

average Contact Resistance(micro-ohms)

<500μΩ

Insulation Resistance

5000MΩ

average. Connection\disconnect(N)

55N

Connector holding force (Ibf)

250N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

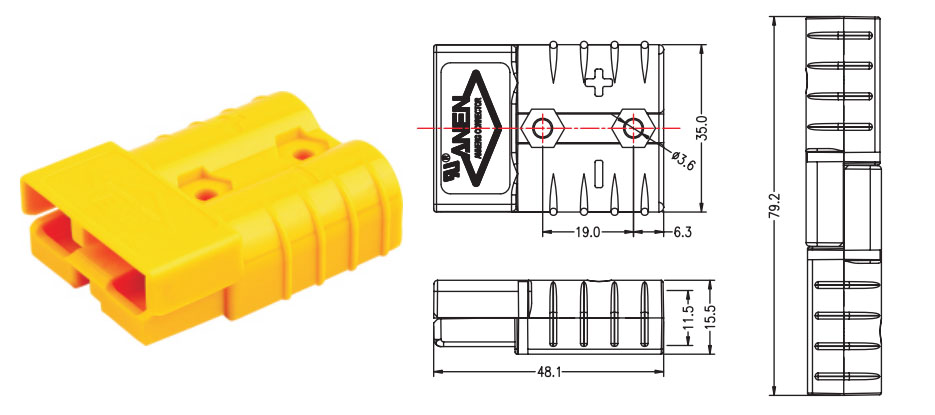

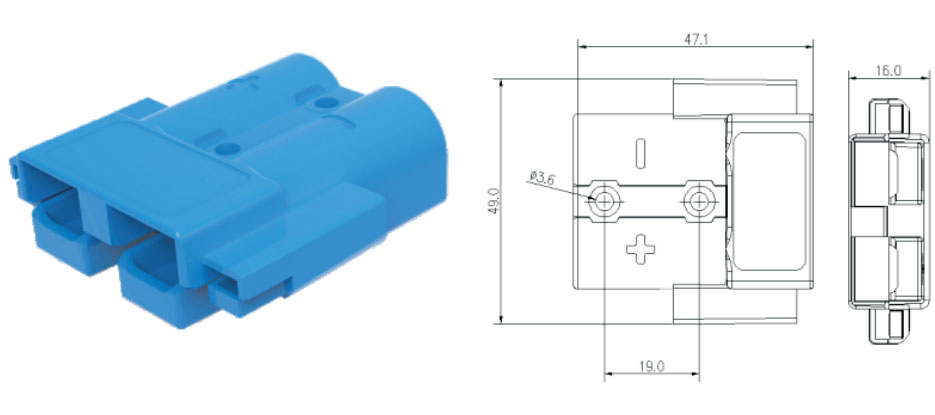

| SA50 Housing

| SA50(2+2) Housing

Multipole Power Connectors SA50&SA50(2 +2)-4
Part Number Housing Color
SA50B0-H Black
SA50B1-H Brown
SA50B2-H Red
SA50B3-H Orange
SA50B4-H Yellow
SA50B5-H Green
SA50B6-H Blue
SA50B7-H Purple
SA50B8-H Gray
SA50B9-H White
Multipole Power Connectors SA50&SA50(2 +2)-5
Part Number Housing Color
SA50A(2 + 2)B0-H Black
SA50A(2 + 2)B1-H Brown
SA50A(2 + 2)B2-H Red
SA50A(2 + 2)B3-H Orange
SA50A(2 + 2)B4-H Yellow
SA50A(2 + 2)B5-H Green
SA50A(2 + 2)B6-H Blue
SA50A(2 + 2)B7-H Purple
SA50A(2 + 2)B8-H Gray
SA50A(2 + 2)B9-H White

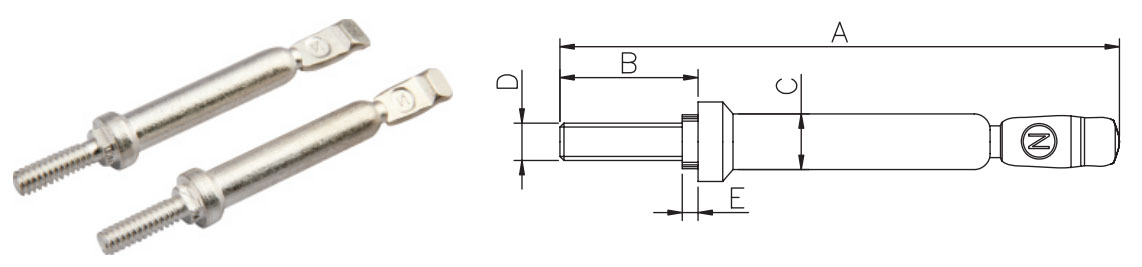

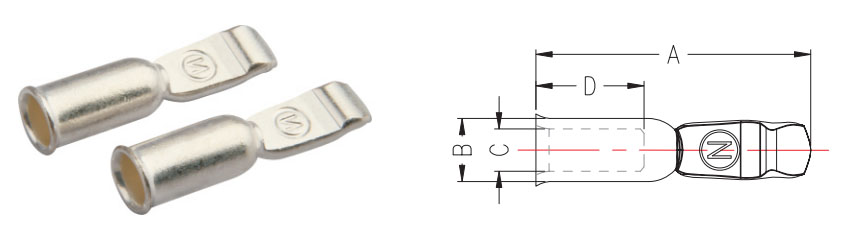

| Terminal

Part Number -A- (mm) -B- (mm) -C- (mm) -D- (mm) Wire
PA5900-T 30.5 7 5.6 12 6 AWG
PA5952-T 30.5 7 4.7 12 8 AWG
PA5915-T 30.5 7 3.5 12 10&12AWG

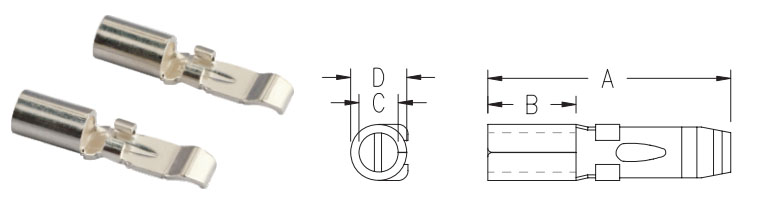

| SA50(2 + 2)Signal terminal

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

Wire

Plating

PA1331-T

17.6

6.4

2.8

4.0

12/16 AWG

Ag

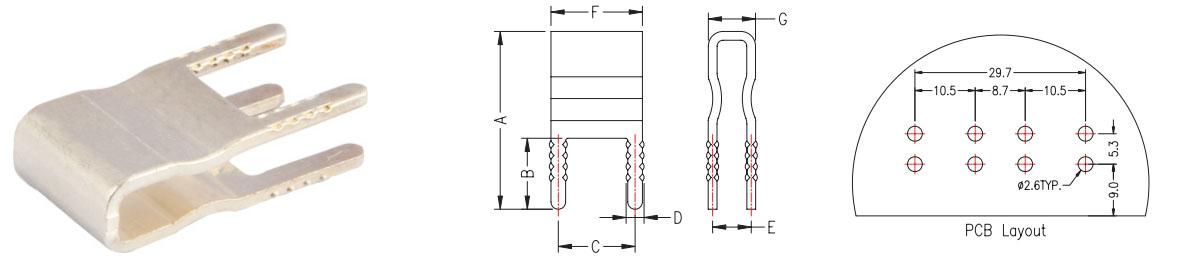

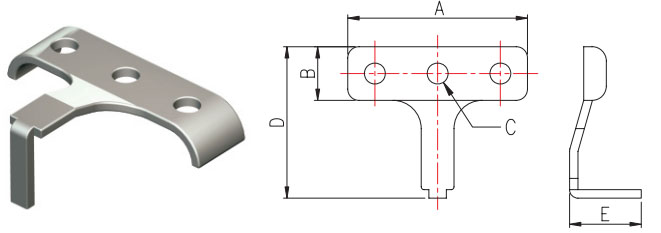

| PCB Terminal contacts

 Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

50/75 BBS

70.5

17.4

7.0

#10-24 THD.

2.0

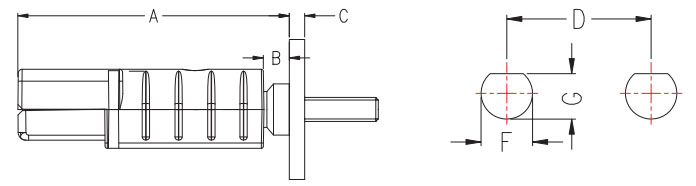

| Mounting Dimensions

Type

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-F-(mm)

-G(mm)

50/75 BBS

53.3

5.1

3.0-12.7

19.1

6.8

6.2

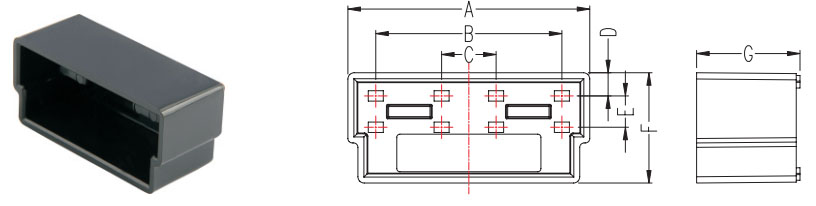

| Board Housings

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mm)

SA-HSG-00

38.6

29.3

8.7

3.7

5.0

17.6

16.5

| PCB Terminal Contacts

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E-(mm)

-F-(mm)

-G(mm)

PC5933-T

24.3

9.7

10.5

2.5

5.3

12.5

6.5

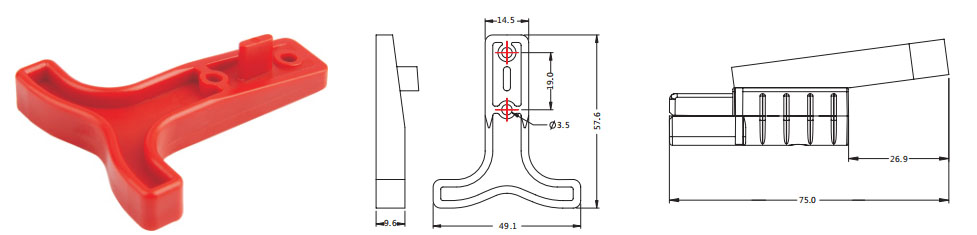

| Handle

Multipole Power Connectors SA50&SA50(2 +2)-8

 Product name

Part number

Use level

Handle

PA112G1-X(2 8)

1 PCS

Screw

GAA041701

2 PCS

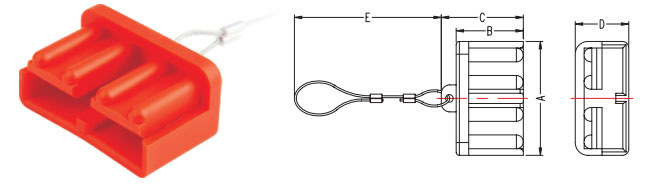

| Dustproof cover

Multipole Power Connectors SA50&SA50(2 +2)-13

 Product name

P/N

Wire(AWG)

Colour

Use level

Rubber plug



Red

1 PCS



Red

1 PCS

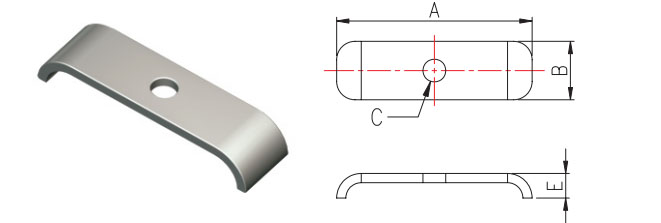

| Wire clamp up cover

Multipole Power Connectors SA50&SA50(2 +2)-14

| Wire clamp under cover

Multipole Power Connectors SA50&SA50(2 +2)-15

Part Number

Part Name

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

PA115G3-1

Wire clamp up cover

31.8

9.5

3.7

26.8

12.7

PA115G3-2

Wire clamp under cover

31.8

9.5

3.7

N/A

4.2

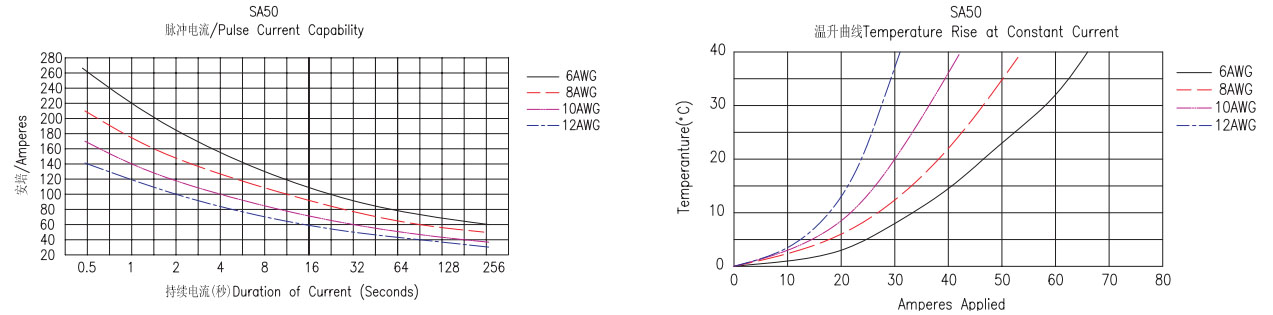

| Temperature rise charts
