Module Power Connector DJL8-8

Short Description:

Type:

The Female Connector: DJL-8AT

The Male Connector: DJL-8AZ

Material:

Housing: PET, 30% fiber glass(G30), UL94V-0, black


Product Detail

Product Tags

Contacts: Pin and socket: brass or copper alloy Crown spring: beryllium bronze

Surface: Unless other specified, #8 Contacts are silver-gilt.

Application

1. Intelligence high frequency switching power supply: Communication power supply, electric power, railway power supply, LED power, solar photovoltaic power, Electric drive and charging equipment, industrial power, medical beauty equipment.

2. Intelligence high frequency switching power supply.

3. UPS

4. Contravariant power

5. Drawer low-voltage cabinet etc.

Technical Parameters:

Rated current (Amperes)

75A

Flammability

UL94 V-0

Impact

980m/s2

Operating Temperature Range

-55°C to +125°C

Relative humidity

40°C, 93%RH

average Contact Resistance

<0.75mΩ

Withstanding Voltage

600V

Vibration

Frenquency 10-2000HZ

Accelerated speed :147m/s2

Mechanical life

500 Times

Average Connection

98N

| Outline and mounting hole size

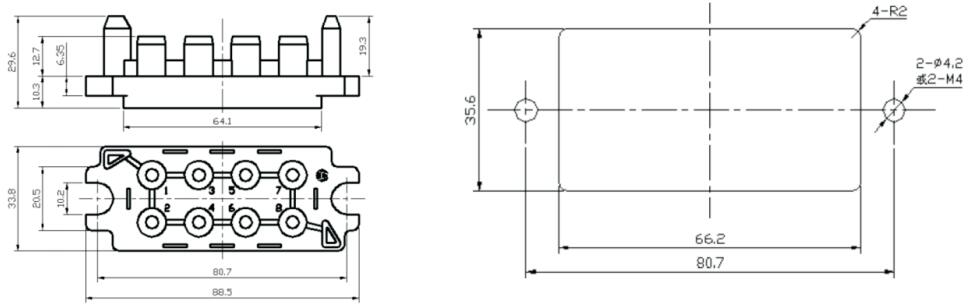

Plug

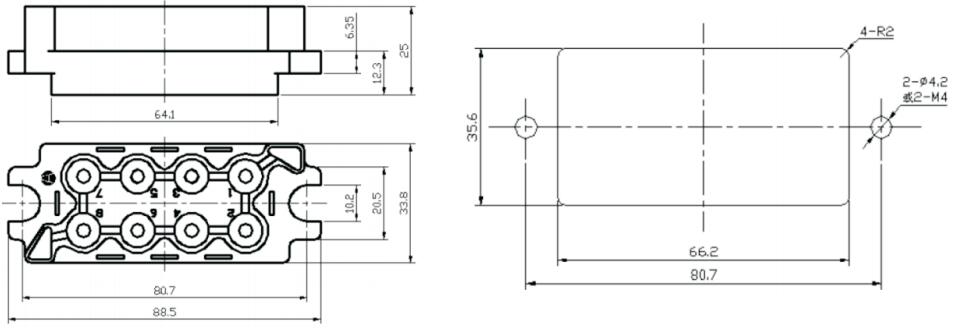

Socket
