Multipole Power Connectors SA2-30

Short Description:

Feature:

• Finger proof

Helps prevent fingers (or probes) from accidentally touching live contacts.

• Flat wiping contact system

Allow for minimal contact resistance at high current,wiping action cleans contact surface during disconnection.

• Molded-in dovetails

Single or multiple contact are available.

• Interchangeable genderless design

Makes assembly easy and reduces stock.


Product Detail

Product Tags

Features:

• Double powerpoles, with sleeve and fixed groove design

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material, anti-gold finger/anti-test PIN/ anti-shock type, anti-misinsertion design

• Contact Barrel Wire Size 10-14AWG

• Rated current 50A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication.Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

50A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

10~14AWG

Contact material

copper Plate with tin

Insulation material

PC

Flammability

UL94V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles&120V)

To 10,000

20A

average Contact Resistance(micro-ohms)

<500μΩ

Insulation Resistance

1000MΩ

average. Connection\disconnect(N)

30N

Connector holding force (Ibf)

200N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

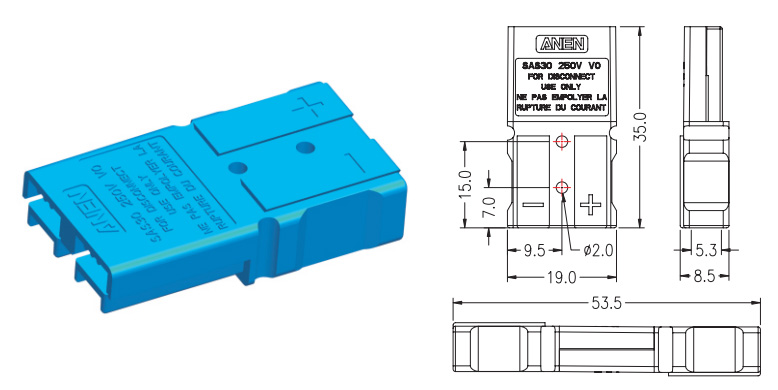

| Housing

Multipole Power Connectors SA2-30-2

Part Number

Housing Color

CFDS03000S Black
CFDS03001S Brown
CFDS03002S Red
CFDS03003S Orange
CFDS03004S Yellow
CFDS03005S Green
CFDS03006S Blue
CFDS03007S Purple
CFDS03008S Gray
CFDS03009S White

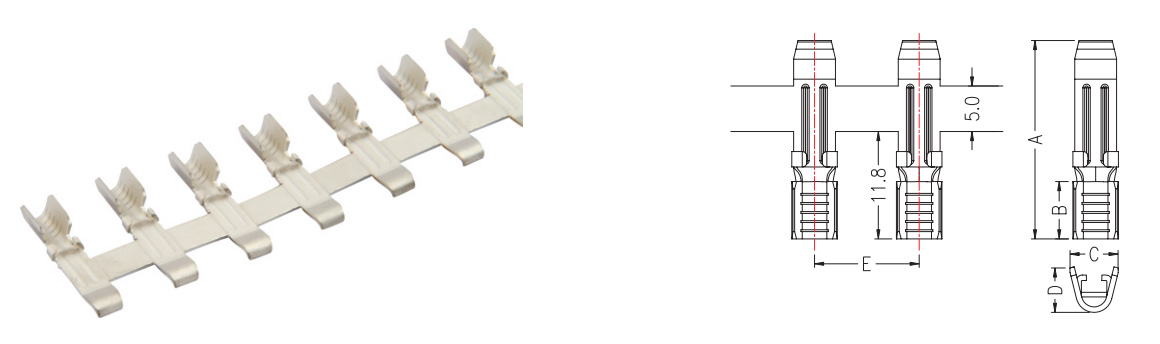

| Terminal

Part number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

Wire

CTDBC001

21.7

6.3

5.0

4.6

11.5

12-14AWG

CTDBC002

21.6

6.5

5.6

5.4

11.5

10AWG

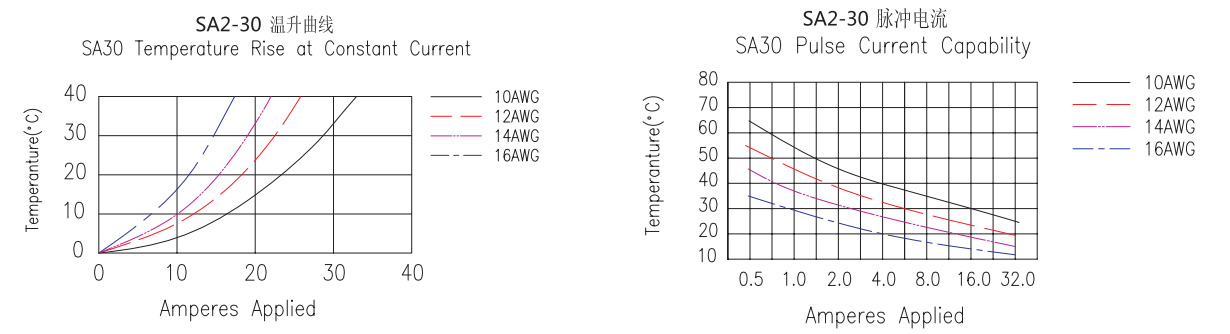

| Temperature rise charts

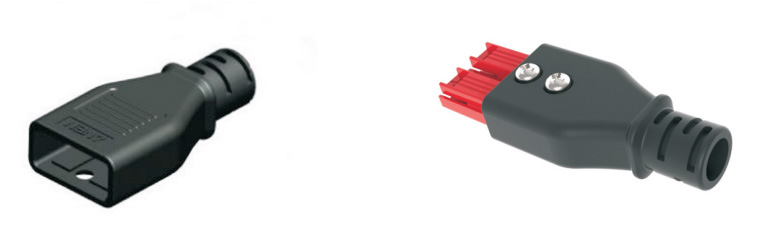

| Provective sleeve

Multipole Power Connectors SA2-30-5

Product name

Part number

Use level

Provective sleeve

GG023

1 PCS

Screw

GAA3501001

2 PCS

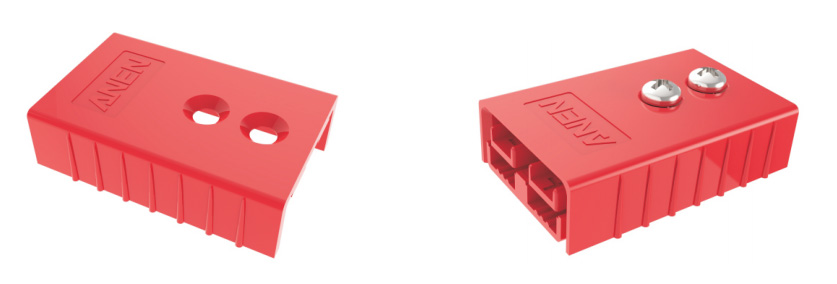

| Shell

Multipole Power Connectors SA2-30-6

Product name

Part number

Use level

Shell

GG022-X( 0 2)

1 PCS

Screw

GAA3501001

2 PCS
