Multipole Power Connectors SAS75&SAS75X

Short Description:

Features:

• Finger proof

Helps prevent fingers(or probes) from accidentally touching live contacts

• Flat wiping contact system, Low Resistance Connection

Allow for minimal contact resistance at high current,wiping action cleans contact surface during disconnection

• Structures color-coded

Pervents accidental mating of commponents operating at different voltage levels

• Molded-in dovetails

Single or multiple contact are available

• Auxiliary contacts

Auxiliary or Ground Positions


Product Detail

Product Tags

Features:

• 2+4 Pin signal connector

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material, Injection Molding

• Contact Barrel Wire Size: Power Pin: 6-12AWG Signal Pin: 24-14AWG

• One set is made of one housing and four terminals (2 power pins+2 signal pins)

• Rated current: Power Pin:75A Signal Pin: 5-10A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification,which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

 Rated current (Amperes)

Power Pin75A,Signal Pin5~10A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

 Pin(Power Pin):6-12AWG    Pin(Signal Pin):24-14AWG

Contact material

 copper、Plate with silver and gold

Insulation material

PC

Flammability

UL94V-0

Life
a. Without load (Contact/Disconnect Cycles)
b. With Load (Hot Plug 250 Cycles&120V)

10000

50A

Contact resistance (milliohm)  Power Pin≤0.5mΩ(8#)   Signal Pin≤5mΩ(20#)
Insulation Resistance

≥5000MΩ

average. Connectiondisconnect(N)

70N

Connector holding force (Ibf)

Power Pin:250N Min, Signal Pin:22N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

| SAS75 Housing

| SAS75X Housing

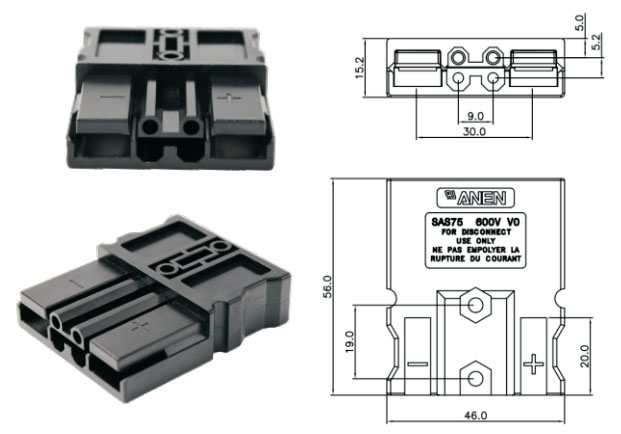

Multipole Power Connectors SAS75&SAS75X-3
Part Number Housing Color
CFDD07500S Black
CFDD07501A Brown
CFDD07502A Red
CFDD07503A Orange
CFDD07504A Yellow
CFDD07505A Green
CFDD07506A Blue
CFDD07507A Purple
CFDD07508A Gray
CFDD07509A White

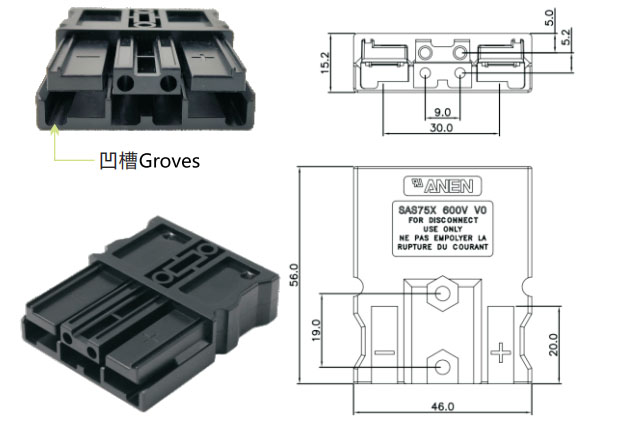

Multipole Power Connectors SAS75&SAS75X-4
Part Number Housing Color
CFDD07500B Black
CFDD07501B Brown
CFDD07502B Red
CFDD07503B Orange
CFDD07504B Yellow
CFDD07505B Green
CFDD07506B Blue
CFDD07507B Purple
CFDD07508B Gray
CFDD07509B White

| Terminal

P/N

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

Wire(AWG)

CTDC001B

37.6

7.0

5.6

12.0

6.8

6 AWG

CTDC002B

37.6

7.0

4.7

12.0

6.8

8 AWG

CTDC003B

37.6

7.0

3.5

12.0

6.8

10&12 AWG

| Contact Pin

P/N

Terminal Type

-A- (mm)

-B- (mm)

-ID- (mm)

-OD- (mm)

Wire(AWG)

CTDC046AL

Long

9.3

21.8

1.1

2.1

24/20 AWG

CTDC047AL

Long

9.3

21.8

1.7

2.8

20/16 AWG

CTDC048AL

Long

9.3

21.8

2.1

2.9

16/14 AWG

| Socket

Multipole Power Connectors SAS75&SAS75X-7

Part Number

-ID- (mm)

-OD- (mm)

Wire

C.F.SAS75X13AL

1.1

2.1

24/20 AWG

C.F.SAS75X12AL

1.7

2.8

20/16 AWG

C.F.SAS75X11AL

2.1

2.9

16/14 AWG

| Handle

Multipole Power Connectors SAS75&SAS75X-8

 Product name

Part number

Use level

Handle

PA112G1-X( 2 8)

1 PCS

Screw

GAA041701

2 PCS

| Temperature rise charts

Multipole Power Connectors SAS75&SAS75X-9
