Multipole Power Connectors SA120

Short Description:

Feature:

• Molded side groves

Allows for a secure panel mounting fit

• Flat wiping contact system

Minimal contact resistance at high current,wiping action cleans contact surface during connection/disconnection

• Structured color-coded

prevents accidental mating of components operating at different voltage levels

• Interchangeable genderless design

Makes assembly easy and reduces stock


Product Detail

Product Tags

Features:

• Double powerpoles, with handle design

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material

• Contact Barrel Wire Size 2-6AWG

• One set is made of one housing and two terminals

• Rated current 120A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Replace Anderson part number SB120

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Powe r-d rive n tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

120A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

02-6AWG

Contact material

Plate with silver

Insulation material

PC

Flammability

UL94 V-0

Life

  1. Without load (Contact/Disconnect Cycles)
  2. With Load (Hot Plug 250 Cycles&120V)

To 10,000

60A

average Contact Resistance(micro-ohms)

<140μΩ

Insulation Resistance

5000MΩ

average. Connection\disconnect(N)

85N

Connector holding force (Ibf)

450N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

| Housing

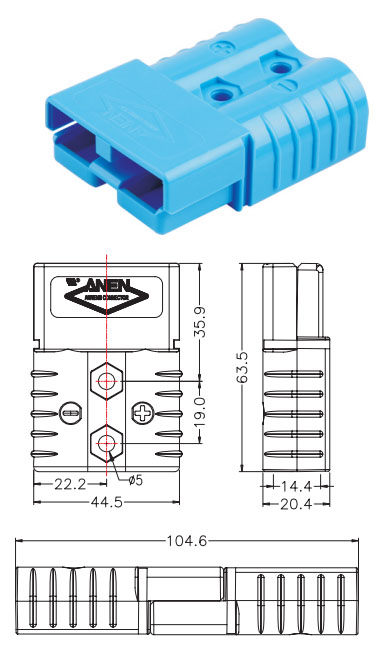

Multipole Power Connectors SA120-3
Part Number Housing Color

SA120B0-H

Black

SA120B1-H

Brown

SA120B2-H

Red

SA120B3-H

Orange

SA120B4-H

Yellow

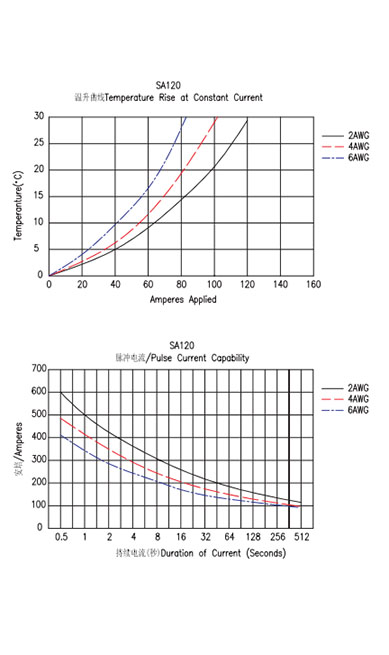

Multipole Power Connectors SA120-4

 Part Number

Housing Color

SA120B5-H

Green

SA120B6-H

Blue

SA120B7-H

Purple

SA120B8-H

Gray

SA120B9-H

White

| Terminal

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

Wire

PA1319G2-T

52.0

11.2

8.7

22.0

2 AWG

PA1319G4-T

52.0

11.2

7.5

22.0

4 AWG

PA1319G6-T

52.0

11.2

5.6

22.0

6 AWG

| PCB Terminal Contacts

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

120 BBS

77.0

11.2

9.7

#10-24 THD.

2.5

| Mounting Dimensions

Type

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-F-(mm)

-G(mm)

120 BBS

68.6

5.1

3.0-19.6

23.6

7.4

6.4

| Handle

Multipole Power Connectors SN50-9

 Product name

Part number

Use level

Handle

PA112G1-X(2 8)

1 PCS

Screw

GAA00328001

2 PCS

Nut

GB027

2 PCS
