Module Power Connector DJL38

Short Description:

DJL series connector module power supply interface special products, and peer in the same products fully interchangeable, and in 2011 passed UL safety certification ( E319259) this series of products adopt the advanced technology of the hyperboloid of one sheet type wire spring hole and jack hole for contact, so the product has high dynamic contact reliability.


Product Detail

Product Tags

This series products of contact with gold or silver plated surface treatment; the plug pinjack socket device, the terminal is press-fit, welding and board ( PCB) three type.

This series products of each type of pin usually have three lengths can be selected, respectively is the long pin, standard type pin and short pin, to meet the needs of users of different needs; can also be based on user requirements custom. Note: Spring crown material selection is the high elasticity high strength beryllium bronze. With spring crown structure with smooth arc contact face jack, plug is soft, and can ensure the maximum contact surface. Thus the spring crown structure of the jack contact resistance is low ( low pressure ), the temperature rise is small, and seismic resistance, anti-vibration ability is very high, so the spring crown structure of the products with high.

Technical Parameters:

Rated voltage (Volts)

                       250V

Relative humidity

            90%-95% (40±2°C )

Electrical characteristics

                   Below table

Life

                         800

Working Temperature (°C)

              -55°C to+125°C

Vibration

          10 ~ 2000Hz 147m/s2

Electrical characteristics:

Model Contact size Quantity Hole no. Rated current(A) Contact resistance(MΩ) Withstand voltage(VAC) Insulation Resistance(MΩ)
DJL-38 6# 8 1~8 105 ≤0.5 ≥2000 ≥3000
8# 8 1~8 75 ≤0.5 ≥2000 ≥3000
20# 24 9~33 5 ≤5 ≥1000 ≥3000

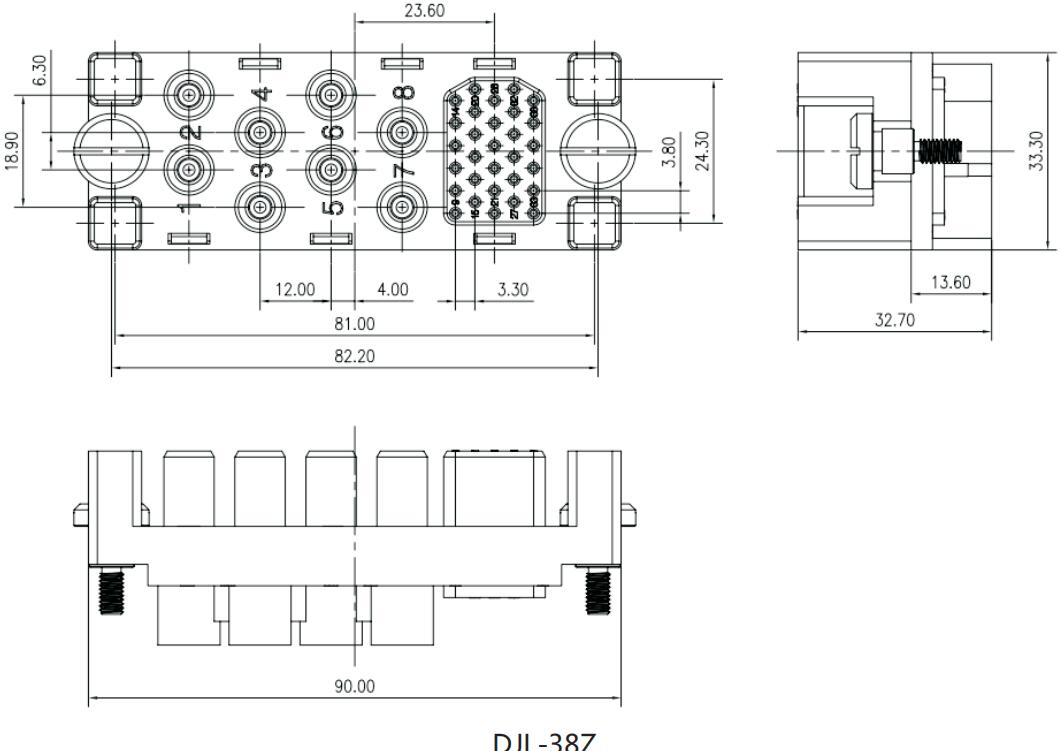

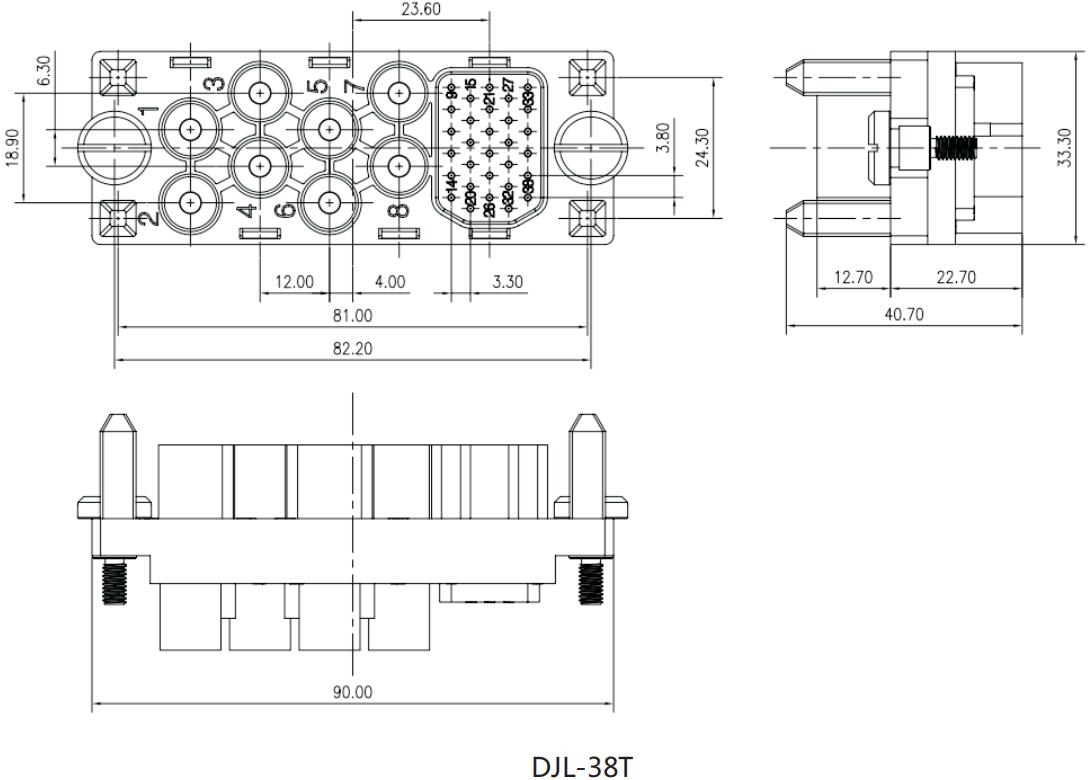

| Outline dimensions and mounting dimensions
