Module Power Connector DC50&DC150

Short Description:

Industrial electric car connectors-DC50

Guiding connection design with low and soft crimping force

Low contact resistance and high current conductivity capability

Anti vibration and strong impact resistanc

Smooth arc contact surface and high dynamic contact reliability

High insulation, resistance and high temperature resistance

Modular, flexible connector

Advanced spring structure design, high dynamic contact reliability

Common used in the industry


Product Detail

Product Tags

Features:

• The housing is made of up cover and under cover

• Insulation material: PBT

• Contact Barrel Wire Size: 8&10AWG

• Contact material: Copper

• Rated current: 50A

• Rated voltage: 80V DC

• RoHS compliance: Yes

• Short circuit current: 5000A 10ms

Technical Parameters:

Rated current (Amperes)  DC50 50A   DC150 150A
Rated voltage (Volts) 80V DC
Contact Barrel Wire Size (mm2 DC50 8&10AWG   DC150 2&4AWG
Insulation Withstanding Test Voltage(Volts AC/DC) 2000V AC
Flammability  UL94 V-0
Environment Temperature (°C) -40℃~+75℃
RoHS compliance  Yes
Power Feed-Fuse Types Circuit breaker Type 3 curve,fuse type GL,Gg and GD
Short circuit current  5000A 10ms
Life a.No load (Contact/Disconnect Cycles)

b.Hot Plug-insertion/extraction

To 50 No
AVG Contact Resistance(micro-ohms) <300μΩ
Insulation Resistance 1000MΩ
Insulation material DC50 PBT DC150 PC
Contact material copper
Contact surface Tin
Entry angle 90 degree
Connector spacing (due to cable obstruction) 120mm Centerline-centerline
Power Feed: Fuse or Circuit Breaker 200A maximum

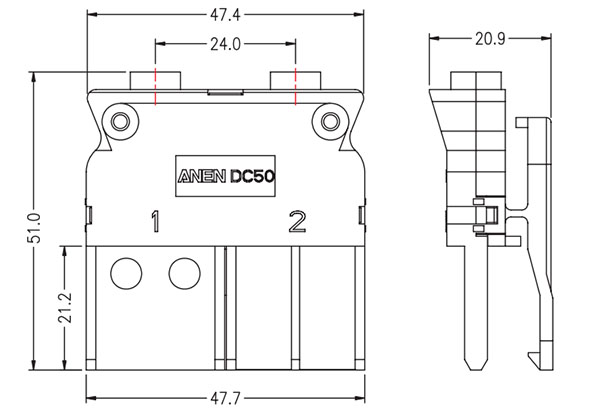

| DC Housing

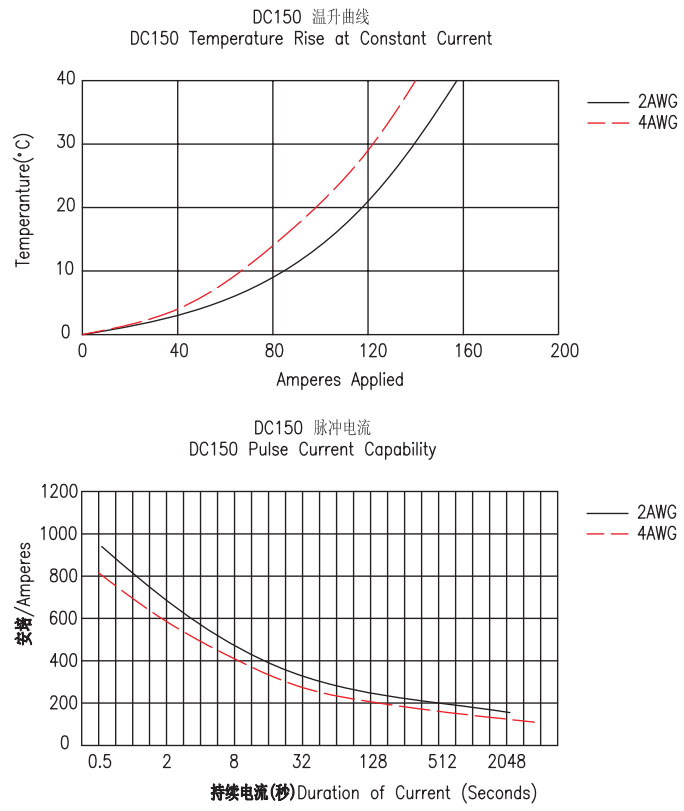

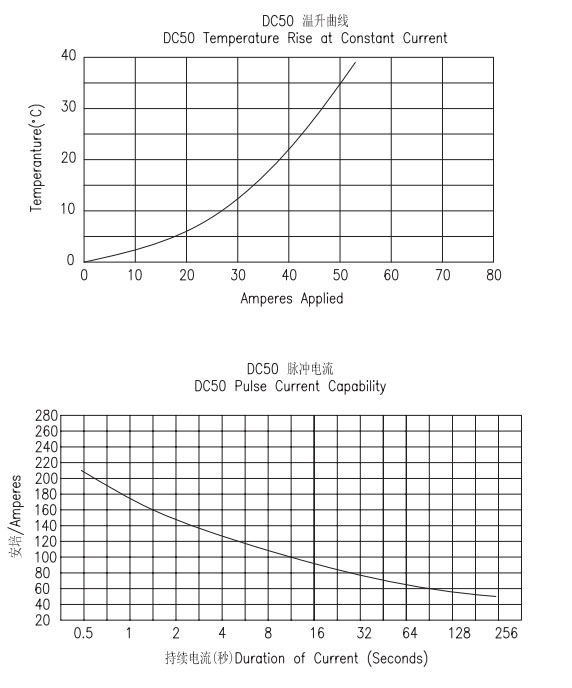

| Temperature rise charts

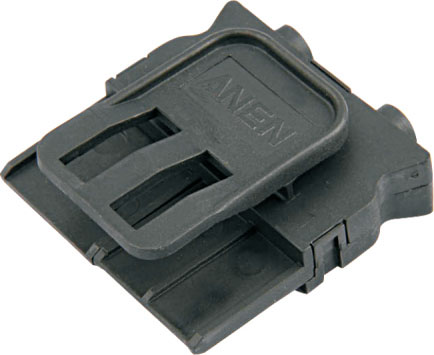

Module Power Connector TJ38-6
Module Power Connector DC50&DC150-2
Module Power Connector DC50&DC150-3

Part Number

Part name

Housing Color

CHDS050001

Up Cover

Black

CHDS050002

Under Cover

Black

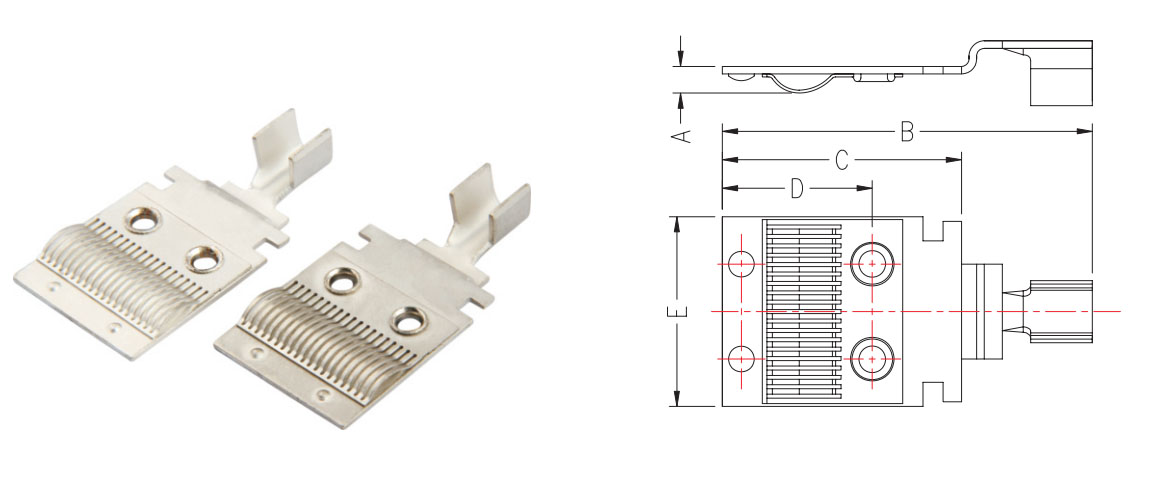

| Terminal

Module Power Connector DC50&DC150-4

Part number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

Wire

CTDCC005A

2.0

39.0

25.2

15.8

20.0

8&10 AWG

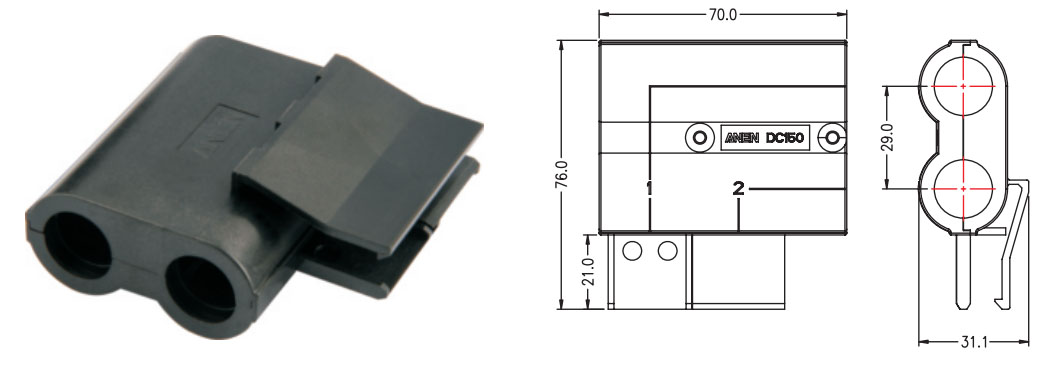

| DC150 Housing

Module Power Connector DC50&DC150-5

Part Number

Part name

Housing Color

CHDS150001

Up Cover

Black

CHDS150002

Under Cover

Black

| DC150 Housing

Module Power Connector DC50&DC150-6

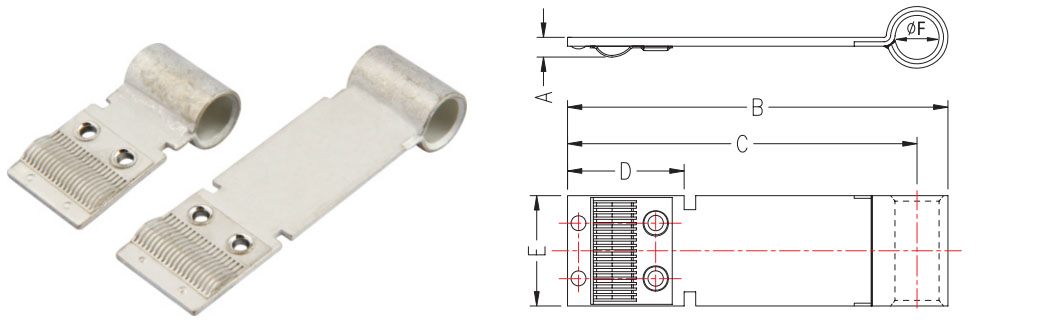

| Terminal

Module Power Connector DC50&DC150-7

Part number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E- (mm)

-F- (mm)

Wire

CTDCC001A

2.8

40.0

34.0

21.0

20.0

9.0

2AWG&4AWG

CTDCC002A

2.8

68.5

62.5

21.0

20.0

9.0

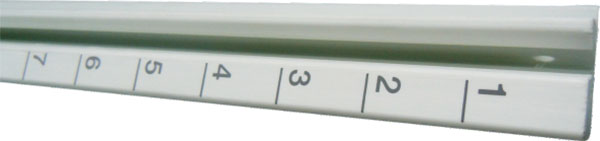

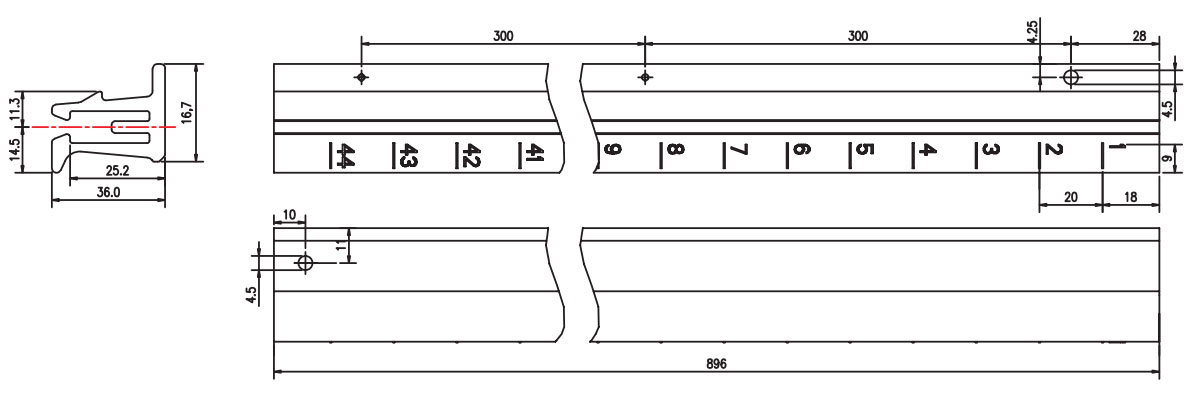

| TerminalDC50&DC150 Housing

Module Power Connector DC50&DC150-8

Part Number

Part name

FDC15001A

DC50&DC150 Housing
Module Power Connector DC50&DC150-9
