Features:
• With bayonet locking
• Adopt specoal shrapnel
• Touch protected in unplugged condition
• Can be equipped with a mi-croswitch as locking status in-dication

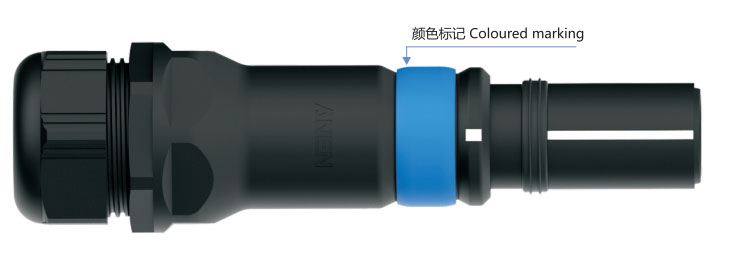

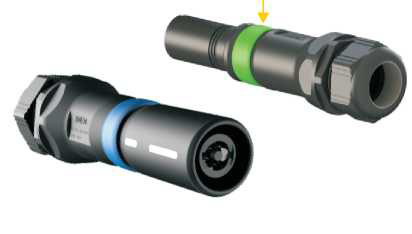

• Clearly visible colour marking on the insulation.
Used in standby power units, test stands, switchgears, construction machinery as well as on- and off- shore applications with harsh environmental conditions.

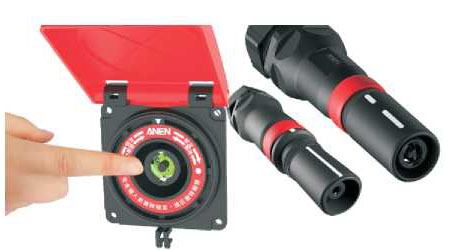

With bayonet locking.

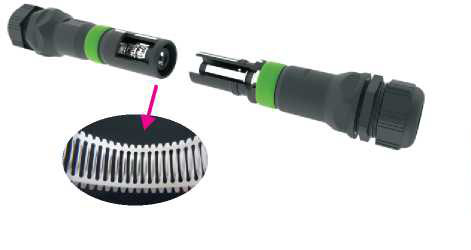

Adopt special shrapnel
Touch protected in unplugged condition
Clearly visible colour marking on the insulation
IP67 in mated condition
Technical Parameters:
| Product model |
IC300 |
IC600 |
| Rated current (Amperes) |
300A |
600A |
| Rated voltage (Volts) |
1000V |
|
| Contact Barrel Wire Size (AWG) |
50~240mm2 |
|
| Contact material | Copper alloy plate with silver | |
| Insulation material |
high temperature Thermoplastic |
|
| Flammability |
UL94 V-0 |
|
| LifeWithout load (Contact/Disconnect Cycles)
With Load (Hot Plug 250 Cycles&120V) |
To 5,000 YES |
|
| average Contact Resistance(micro-ohms) |
30μQ |
|
| Insulation Resistance |
5000MQ |
|
| average. Connectiondisconnect(N) |
200N |
|
| Environment Temperature (°C) |
-20°C… + 120°C |
|
| Rated Impulse Voltage |
6.6KV AC |
|
|

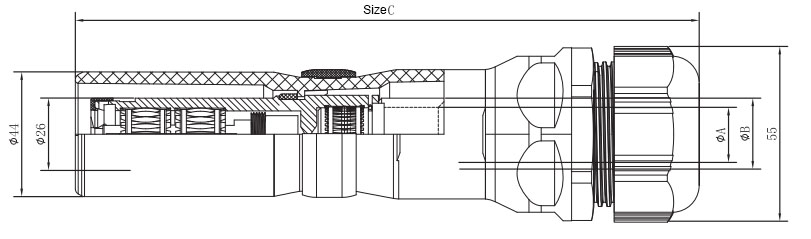

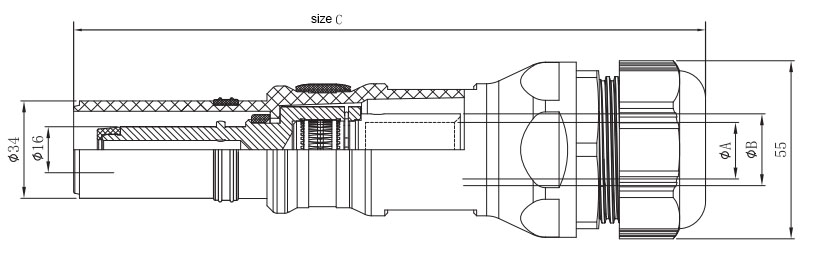

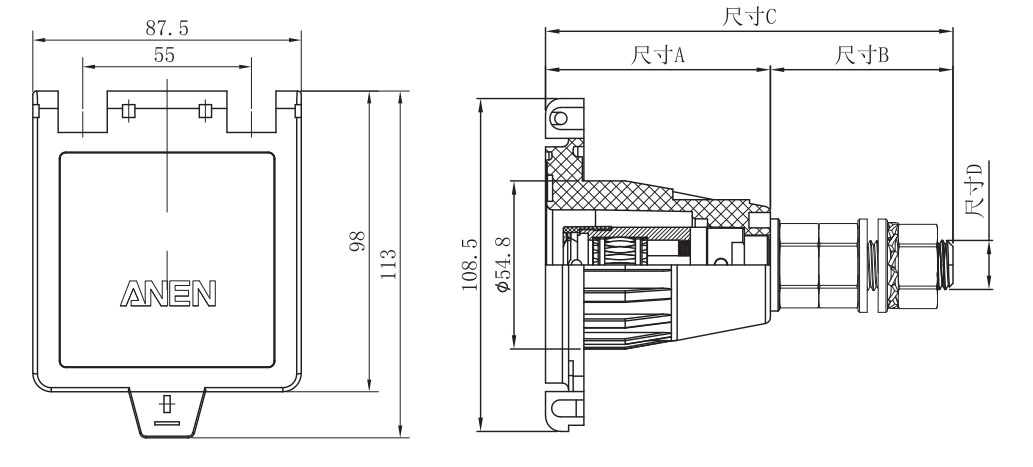

Plug P/N |
A(mm) Size A(mm) |
B(mm) Size B(mm) |
C(mm) Size C(mm) |
D(mm) Size D(mm) |

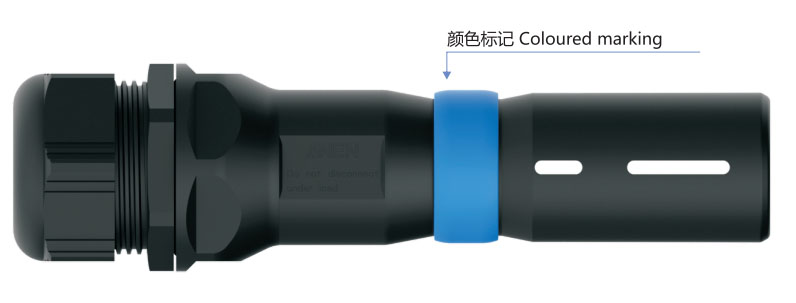

Coloured marking |
|
F.IC300B01-*A |
73.3 |
59.5 |
132.8 |
M14 |
 |
|
F.IC600B01-*A |
94 |
75 |
169 |
M16 |

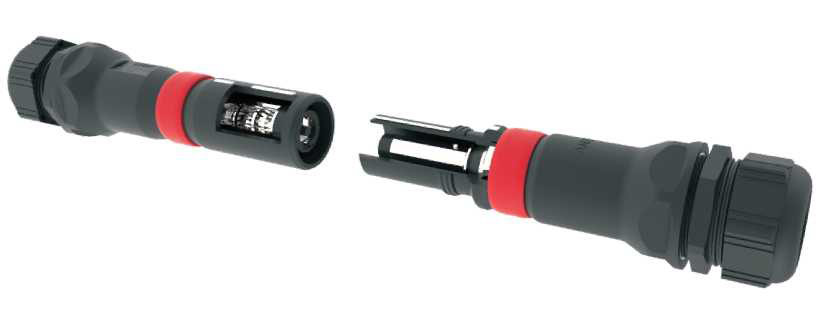

| Male cable connector
|
Plug P/N |
(mm2) Conductor cross section |
φA(mm)
Dimension0(mm) |
φB(mm) Dimension0(mm) |
Coloured marking |
|
F.IC300M01-*A |
50~70mm2 |
12.5 |
17.5 |
|
|
F.IC300M02-*A |
95~120mm2 |
16.0 |
21.0 |
|
|
F.IC600M01-*A |
150mm2 |
19.0 |
25.0 |
|
|
F.IC600M02-*A |
185mm2 |
21.0 |
27.0 |
|
|
F.IC600M03-*A |
240mm2 |
24.0 |
30.0 |
| Female cable connector
|
Plug P/N |
(mm2) Conductor cross section |
φA (mm) Dimension0(mm) |
φB (mm) Dimension0(mm) |
Coloured marking |
|
F.IC300F01-*A |
50~70mm2 |
12.5 |
17.5 |
|
|
F.IC300F02-*A |
95~120mm2 |
16.0 |
21.0 |
|
|
F.IC600F01-*A |
150mm2 |
19.0 |
25.0 |
|
|
F.IC600F02-*A |
185mm2 |
21.0 |
27.0 |
|
|
F.IC600F03-*A |
240mm2 |
24.0 |
30.0 |
