This series products of contact with gold or silver plated surface treatment; the plug pinjack socket device, the terminal is press-fit, welding and board ( PCB) three type.
This series products of each type of pin usually have three lengths can be selected, respectively is the long pin, standard type pin and short pin, to meet the needs of users of different needs; can also be based on user requirements custom. Note: Spring crown material selection is the high elasticity high strength beryllium bronze. With spring crown structure with smooth arc contact face jack, plug is soft, and can ensure the maximum contact surface. Thus the spring crown structure of the jack contact resistance is low ( low pressure ), the temperature rise is small, and seismic resistance, anti-vibration ability is very high, so the spring crown structure of the products with high.
Technical Parameters:
|
Rated voltage (Volts) |
250V |
|
Relative humidity |
90%-95% (40±2°C ) |
|
Electrical characteristics |
Below table |
|
Life |
800 |
|
Working Temperature (°C) |
-55°C…+125°C |
|
Vibration |
10 ~ 2000Hz 147m/s2 |
Electrical characteristics:
|
Modle |
Contact size |
Quantity |
Hole no. |
Rated current（A） |
Contact resistance（mΩ ） |
Withstand voltage（VAC） |
Insulation resistance（MQ） |
|
DJL-25 |
12# |
4 |
26-29 |
35 |
<1 |
22000 |
>3000 |
|
12# |
10 |
1~4;20~25 |
35 |
<1 |
>2000 |
>3000 |
|
|
20# |
15 |
5~19 |
5 |
<5 |
21000 |
>3000 |
| Outline dimensions and mounting dimensions

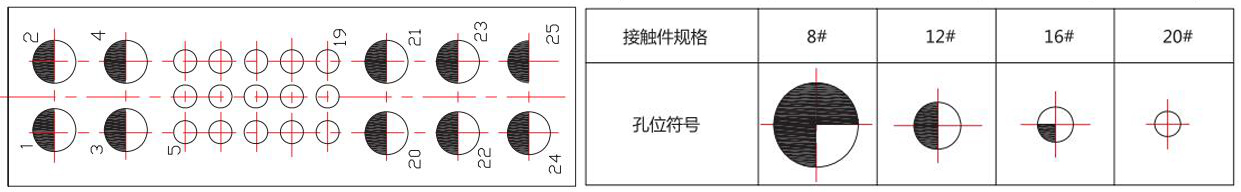

Contact type spectrum (from the plug combination side )

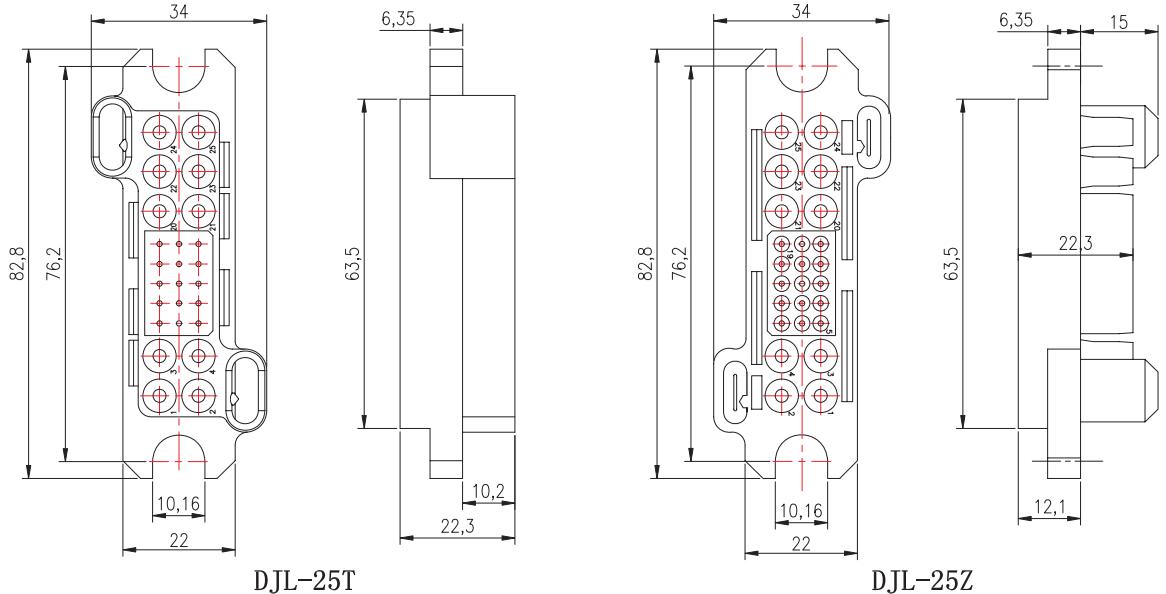

Out line and mounting dimensions

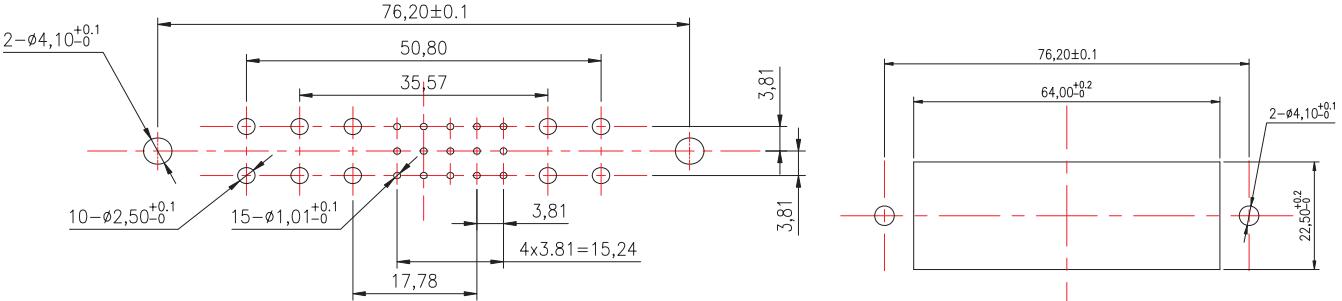

DJL25 panel mounting hole size
