Our company has been focusing on brand strategy. Customers' satisfaction is our best advertising. We also supply OEM service for Electrical Wire Coupler, Barrel Jack Connector, Anderson Sb175, Our professional technological team will be wholeheartedly at your services. We sincerely welcome you to definitely take a look at our website and enterprise and send out us your inquiry.
China Wholesale Ip67 Power Connector Factories – Multipole Power Connectors SA175&SA3175&SAE175 – ANEN Detail:

Features:

• Double powerpoles, with handle&rubber plug&Dustproof cover design

• A variety of colors design,

• The terminals are made of high-purity electrolytic red copper

• The housing is made of PC high temperateure material

• Contact Barrel Wire Size 1/0-4AWG

• Rated current 175A

• Dielectric Withsanding Voltage 2200 Volts AC

• Temperature Range -20℃-105℃

• Replace Anderson part number SB175

• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities

Applications:

This series of products meets strict UL, CUL certification, which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles.medical equipment AC/DC power etc. of widely industry and the most area around world.

Technical Parameters:

Rated current (Amperes)

175A

Voltage Rating AC/DC

600V

Contact Barrel Wire Size (AWG)

04-1/0AWG   21.1-53.5m²

Contact material

Copper、Plate with silver

Insulation material

PC

Flammability

UL94V-0

 Life

  1. Without load (Contact/Disconnect Cycles)
  2. With Load (Hot Plug 250 Cycles&120V)

To 10,000

75A

average Contact Resistance(micro-ohms)

<95 μΩ

Insulation Resistance

5000MΩ

average. Connectiondisconnect(N)

150N

Connector holding force (Ibf)

500N Min

Temperature Range

-20°C~105°C

Dielectric Withstanding Voltage

2200 Volts AC

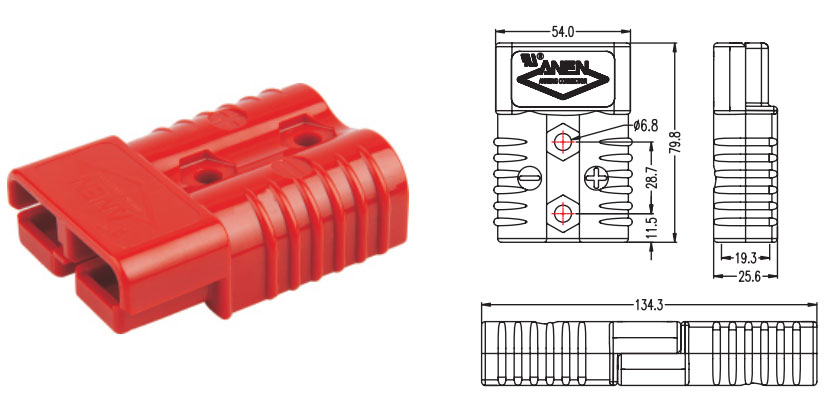

| SA175 2 Pole Housing


Multipole Power Connectors SA175&SA3175&SAE175-6

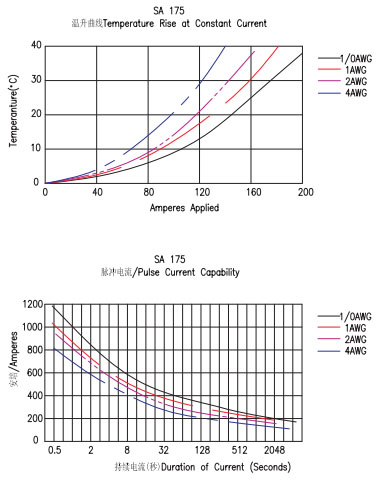

| Temperature rise charts


Multipole Power Connectors SA175&SA3175&SAE175-7

   Part Number Housing Color
  SA175B0-H Black
  SA175B1-H Brown
  SA175B2-H Red
  SA175B3-H Orange
  SA175B4-H Yellow
  SA175B5-H Green
  SA175B6-H Blue
  SA175B7-H Purple
  SA175B8-H Gray
  SA175B9-H White

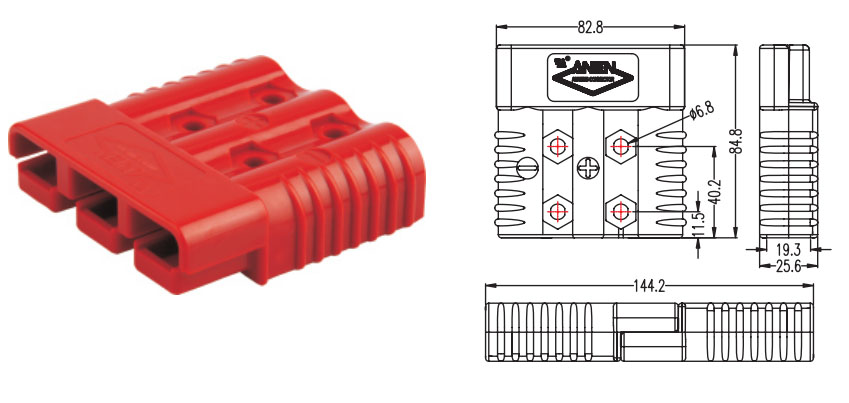

| SA3175 3 Pole Housing


Multipole Power Connectors SA175&SA3175&SAE175-8

  Part Number Housing Color
  SA3175B0-H Black
 SA3175B1-H Brown
 SA3175B2-H Red
 SA3175B3-H Orange
 SA3175B4-H Yellow
 SA3175B5-H Green
 SA3175B6-H Blue
 SA3175B7-H Purple
 SA3175B8-H Gray
 SA3175B9-H White





| Temperature rise charts


Multipole Power Connectors SA175&SA3175&SAE175-9

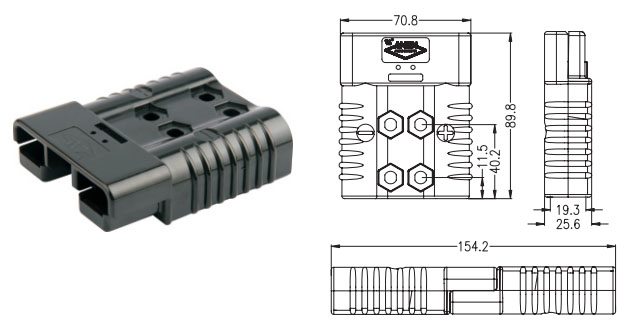

| SAE175 Housing


Multipole Power Connectors SA175&SA3175&SAE175-10

Part Number Housing Color
SAE175B0-H Black
SAE175B1-H Brown
SAE175B2-H Red
SAE175B3-H Orange
SAE175B4-H Yellow
SAE175B5-H Green
SAE175B6-H Blue
SAE175B7-H Purple
SAE175B8-H Gray
SAE175B9-H White

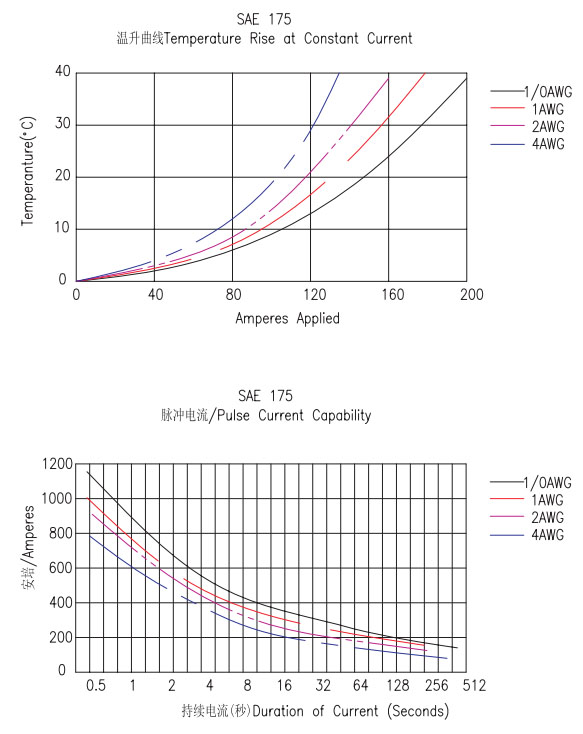

| Temperature rise charts


Multipole Power Connectors SA175&SA3175&SAE175-11

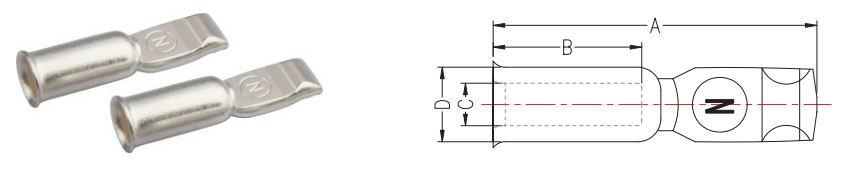

| Terminal

Multipole Power Connectors SA175&SA3175&SAE175-12

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

Wire

Current

PA1380-T

56.1

25.7

11.2

13.0

1/0 AWG

200A

PA1382-T

56.1

25.7

11.2

13.0

1/0 AWG

175A

PA1383-T

56.1

25.7

8.9

13.0

2 AWG

150A

PA1384-T

56.1

25.7

7.6

13.0

4 AWG

120A

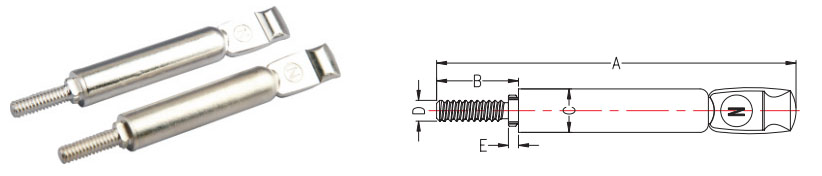

| PCB Terminal Contacts

Multipole Power Connectors SA175&SA3175&SAE175-13

Part Number

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-E (mm)

175/180 BBS

106.5

23.7

13.0

1/4-20 TH D.

2.5

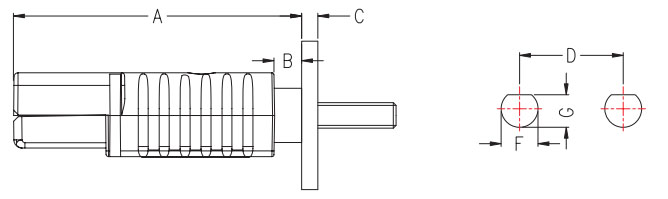

| Mounting Dimensions

Multipole Power Connectors SA175&SA3175&SAE175-14

Type

-A- (mm)

-B- (mm)

-C- (mm)

-D- (mm)

-F-(mm)

-G(mm)

175/180 BBS

89.8

3.9

3.0

26.8

9.53

7.73

| Handle

Multipole Power Connectors SA175&SA3175&SAE175-15

 Product name

Part number

Use level

Handle

PA112G3-X(0 2 8)

1 PCS

Screw

GAA0604001

2 PCS

Nut

Gb007

2 PCS

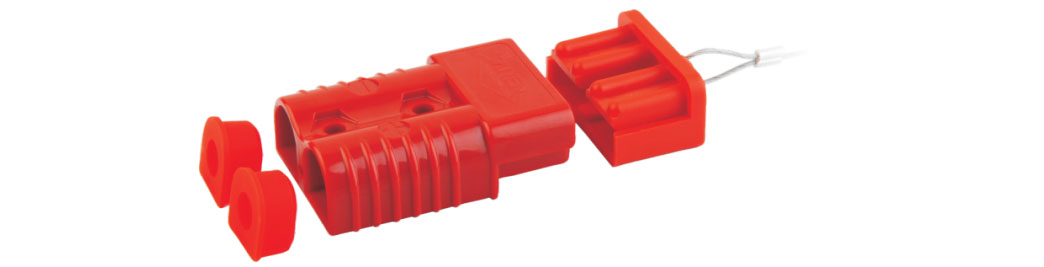

| Rubber plug &Dustproof cover

Multipole Power Connectors SA175&SA3175&SAE175-16

 Product name P/N Wire(AWG) Colour Use level
Rubber plug PA117G2 2AWG Red 2 PCS
PA117G3 1/0 AWG Red 2 PCS



Product name Part name P/N Colour Use level
Dustproof cover SA175 PA113G2 Red 1 PCS
SAE 175 PA113G5 Red 1 PCS

Product detail pictures:
