Features:
• 2+4 Pin signal connector
• The terminals are made of high-purity electrolytic red copper
• The housing is made of PC high temperateure material, Injection Molding
• Contact Barrel Wire Size: Power Pin: 6-12AWG Signal Pin: 24-14AWG
• One set is made of one housing and four terminals (2 power pins+2 signal pins)
• Rated current: Power Pin:75A Signal Pin: 5-10A
• Dielectric Withsanding Voltage 2200 Volts AC
• Temperature Range -20℃-105℃
• Independent innovation, independent research and development to provide customers with the best quality, the most competitive products, for the power connection to create unlimited possibilities
Applications:
This series of products meets strict UL, CUL certification,which can be used safety in logistics communication. Power-driven tools, UPS systems Electric vehicles. medical equipment AC/DC power etc. of widely industry and the most area around world.
Technical Parameters:
| Rated current (Amperes) |
Power Pin75A，Signal Pin5~10A |
| Voltage Rating AC/DC |
600V |
| Contact Barrel Wire Size (AWG) |
Pin(Power Pin):6-12AWG Pin(Signal Pin):24-14AWG |
| Contact material |
copper、Plate with silver and gold |
| Insulation material |
PC |
| Flammability |
UL94V-0 |
| Life a. Without load (Contact/Disconnect Cycles) b. With Load (Hot Plug 250 Cycles&120V) |
10000 50A |
| Contact resistance (milliohm) | Power Pin≤0.5mΩ(8#) Signal Pin≤5mΩ(20#) |
| Insulation Resistance |
≥5000MΩ |
| average. Connectiondisconnect(N) |
70N |
| Connector holding force (Ibf) |
Power Pin:250N Min, Signal Pin:22N Min |
| Temperature Range |
-20°C~105°C |
| Dielectric Withstanding Voltage |
2200 Volts AC |
| SAS75 Housing
| SAS75X Housing

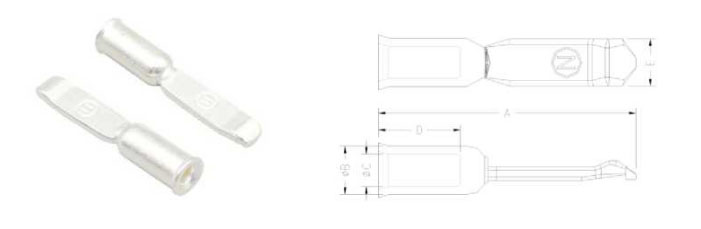

| Terminal
|
P/N |
-A- (mm) |
-B- (mm) |
-C- (mm) |
-D- (mm) |
-E- (mm) |
Wire(AWG) |
|
CTDC001B |
37.6 |
7.0 |
5.6 |
12.0 |
6.8 |
6 AWG |
|
CTDC002B |
37.6 |
7.0 |
4.7 |
12.0 |
6.8 |
8 AWG |
|
CTDC003B |
37.6 |
7.0 |
3.5 |
12.0 |
6.8 |
10&12 AWG |

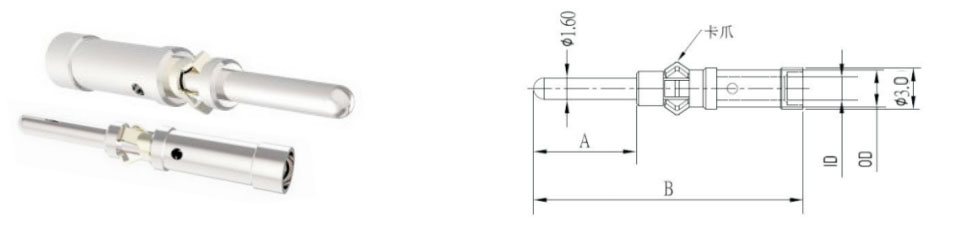

| Contact Pin
|
P/N |
Terminal Type |
-A- (mm) |
-B- (mm) |
-ID- (mm) |
-OD- (mm) |
Wire(AWG) |
|
CTDC046AL |
Long |
9.3 |
21.8 |
1.1 |
2.1 |
24/20 AWG |
|
CTDC047AL |
Long |
9.3 |
21.8 |
1.7 |
2.8 |
20/16 AWG |
|
CTDC048AL |
Long |
9.3 |
21.8 |
2.1 |
2.9 |
16/14 AWG |

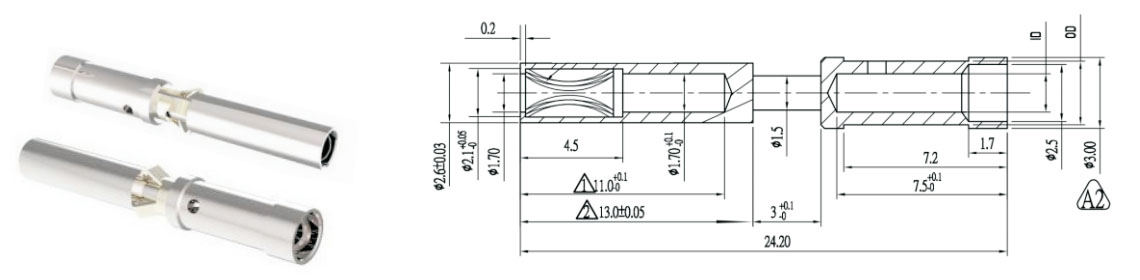

| Socket
|
Part Number |
-ID- (mm) |
-OD- (mm) |
Wire |
|
C.F.SAS75X13AL |
1.1 |
2.1 |
24/20 AWG |
|
C.F.SAS75X12AL |
1.7 |
2.8 |
20/16 AWG |
|
C.F.SAS75X11AL |
2.1 |
2.9 |
16/14 AWG |

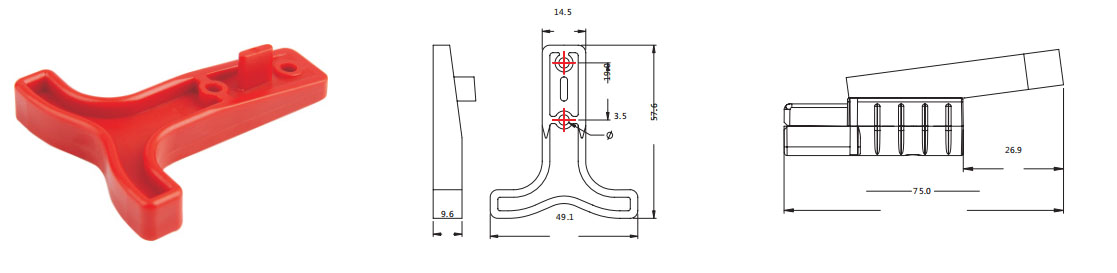

| Handle
|
Product name |
Part number |
Use level |
|
Handle |
PA112G1-X( 2 8) |
1 PCS |
|
Screw |
GAA041701 |
2 PCS |

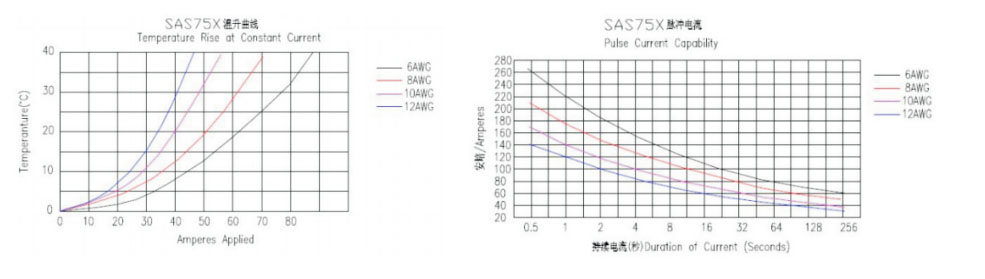

| Temperature rise charts
